OPTEX, BXS-RAM(W), 24m Narrow Area Outdoor PIR Battery + Antimask - White

OPTEX, BXS-RAM(W), 24m Narrow Area Outdoor PIR Battery + Antimask - White

  • Brand:Optex
  • Product Code:BXS-RAM(W)
  • Availability:Please Call or Email Us to Check Availability

Please contact sales on 01628 669124 or email sales@hunters-wholesalers.co.uk for a quote on this product

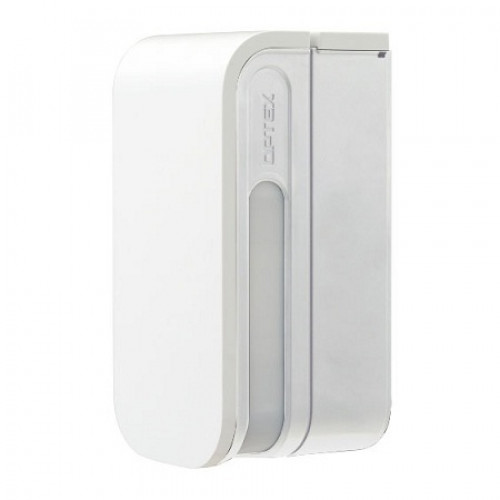

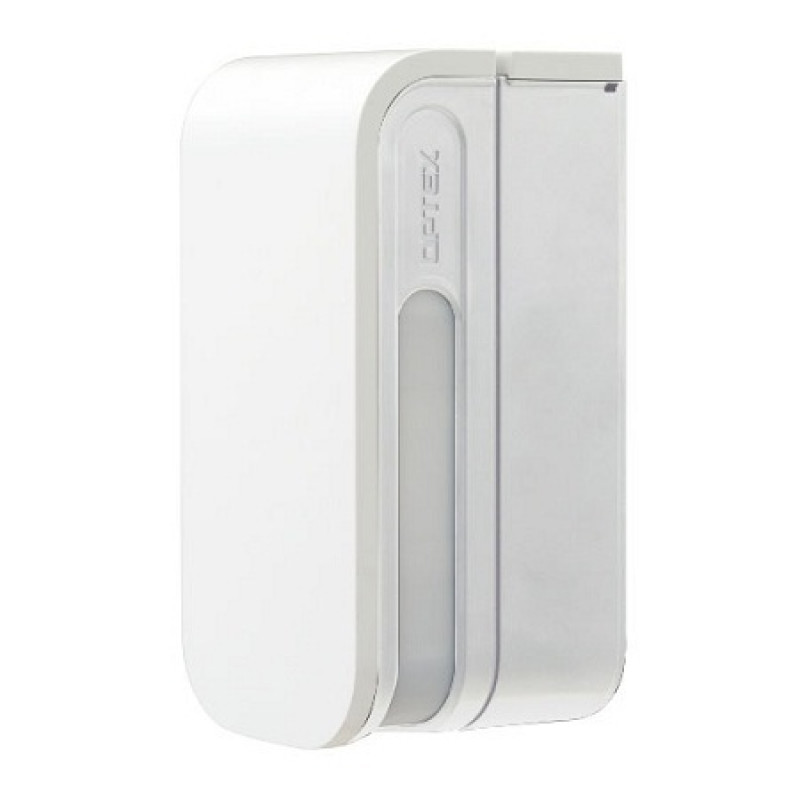

OPTEX, BXS-RAM(W), 24m Narrow Area Outdoor PIR Battery-Powered with Antimasking - White

The BX Shield is a series of curtain outdoor motion sensors with up to 12m detection range on each side. Ideal to detect people in the immediate boundary of your home or office building, the outdoor detectors feature four PIRs, two on each side. The left and right detection area can be set up completely independently from each other. The BXS-RAM is the wireless model.

Independent Left/ Right Motion Detection and CCTV Connection:

The outdoor motion sensor’s detection range, sensibility and alarm output can be set independently on the left and the right. The detection distance can easily be set at 2.5m, 3.5m, 6m, 8.5m to 12m on each side, the sensitivity can be set from low to extremely high, detecting only 1 degree Celsius temperature difference. The BX Shield can be easily connected to a fixed dome CCTV camera to send visual alarm when people are entering in the immediate boundary of the premises.

Versatile Design:

The BX Shield curtain sensor has been designed with the user in mind. A 90 degree unlocking system allows easy access to the settings area, a spirit level help fixing the sensor straight. A black and silver face covers are available as option making the look of the outdoor curtain sensor easy to blend with its environment.

Four PIRs in One Sensor for Best Reliability:

Why two PIR in each side ? to make sure we offer the best performance needed in outdoor environment. On each side, the BX Shield motion sensor features two passive infrared beams one pointing towards the floor and one pointing away from the sensor, both beams need to trigger to confirm the detection: this system allows to ignore small to middle size dog animals and detect only people.

Key Features:

  • Wireless curtain PIR up to 12m per side with anti-masking
  • Completely independent detection setting per side
  • Versatile and easy-to-install design
  • Not affected by environment or small animals

Applications:

  • Buildings
  • Perimeter
  • Approach
  • House

For more details, Please refer with our attached datasheet.
