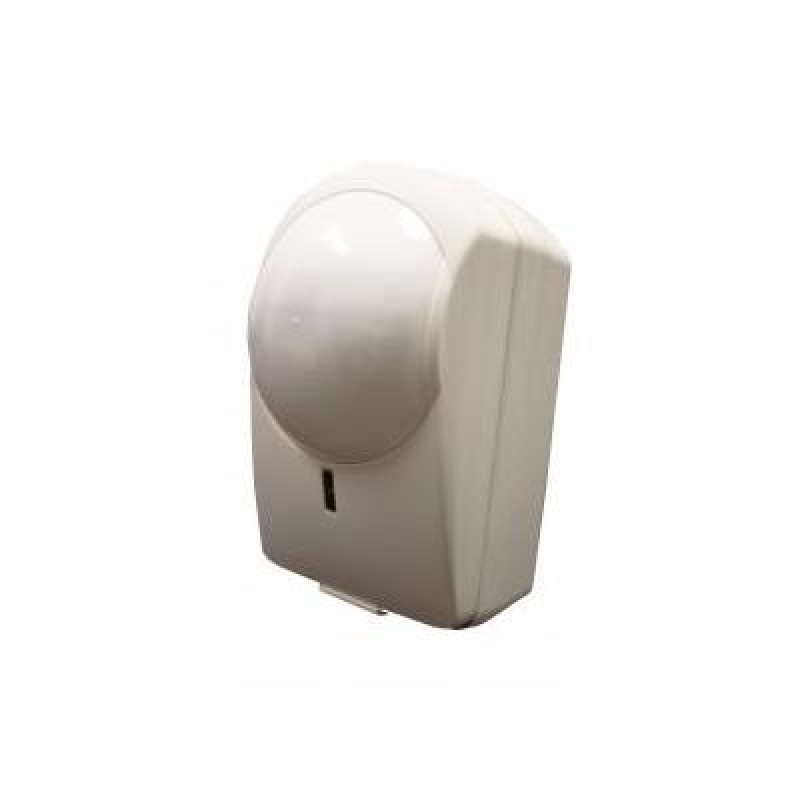

Optex, EX-35R(C), Battery-powered Low Cost Indoor PIR

Optex, EX-35R(C), Battery-powered Low Cost Indoor PIR

The battery-powered EX-35R is a low cost indoor PIR with a back box for battery and wireless transmitter (not included). You can select between precise wide angle and long range coverage, and also multi-level or pet alley detection patterns. By incorporating our patented multi-focus technology into the spherically designed lens, the EX-35R has successfully eliminated sensitivity problems caused by changes in detection patterns.

Key Features:

• Low current battery operated model (battery not included)
• Selectable Dual-Purpose Spherical Fresnel Lens, Wide Angle & Long Range
• Selectable Multilevel & Pet Alley Detection patterns
• Patented Multi-Focus Lens
• RFI Protection : 20V/m
• Selectable Pulse Count : 2 or 4
• LED On/Off Switch
• Tamper Switch

Technical Specifications:

• Power Input: 2.3 - 10V DC
• Alarm Output: Form C solid state switch 10V DC 0.01A max.
• Current Consumption: 3.5uA (standby) 10mA (LED on)
• Operation Temperature: +14 - +122 °F (-10 - +50℃)
• Technology: Passive Infrared
• Coverage: 35ft. x 35ft., or 55ft.x 5.5ft. Residential PIR Wireless w/Tamper

For more details, please refer with our attached datasheet.
