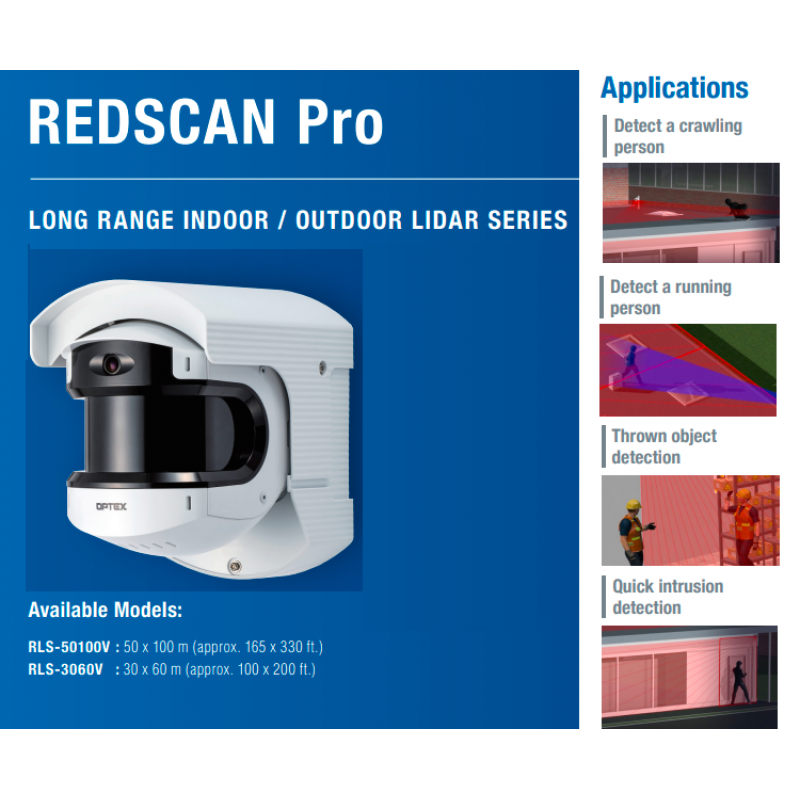

Optex (RLS-3060V) 30 x 60 m (approx. 100 x 200 ft.) LiDAR Security sensor, 30m radius

Optex (RLS-3060V) 30 x 60 m (approx. 100 x 200 ft.) LiDAR Security sensor, 30m radius,190 degree area with OnVIF complaince

Achieve more with just one sensor

RLS-3060V provides 30 x 60 m, 190 degree detection allowing to protect wide areas, with just one sensor. The detection area can be divided in up to 8 independent zones, and for each of them the object target size, sensitivity and output can be customised. It gives great flexibility to adapt the settings depending on the zones location and level of threat. For instance one detection zone can be set to detect people, while another is set to detect vehicles, or one zones can be set as pre-warning and another as immediate security alert.

The REDSCAN PRO's detection range and versality enables to achieve what is usually done by multiple sensors.

In addition the sensor has a built-in camera which can record on the device, alarm events and save both logs and pre-post event photos and videos, to be used as additional support to review what triggered the alarm and make any adjustments necessary to the settings.

Intelligent and weather resistant device

With onboard LiDAR analytics, REDSCAN Pro can analyse the size, the speed and the distance of the moving objects, providing point detection by tracking the X & Y coordinates of the moving objects. A further advantage of LiDAR technology is that the detection performance is stable at any time without being affected by light or temperature.

RLS-3060V features environmental resistance function to reduce false alarms due to harsh environments like fog or snow. An Auto Area Adjustment function allows REDSCAN Pro to continuously adjust the detection area to take into consideration changes happening on ground such as accumulation of snow or leaves. The sensor can operate from -20 to +60 degrees and when using a heated lens can extend its operating temperature to -40 degree.
