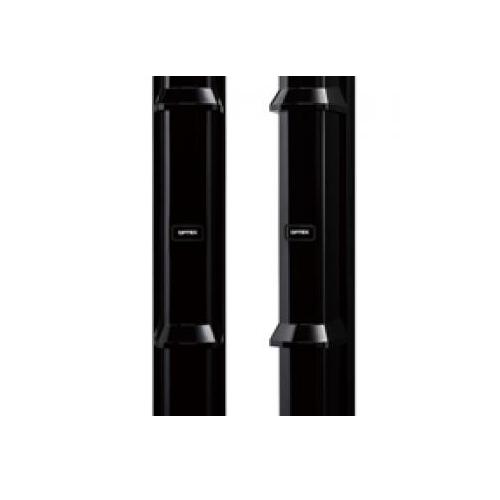

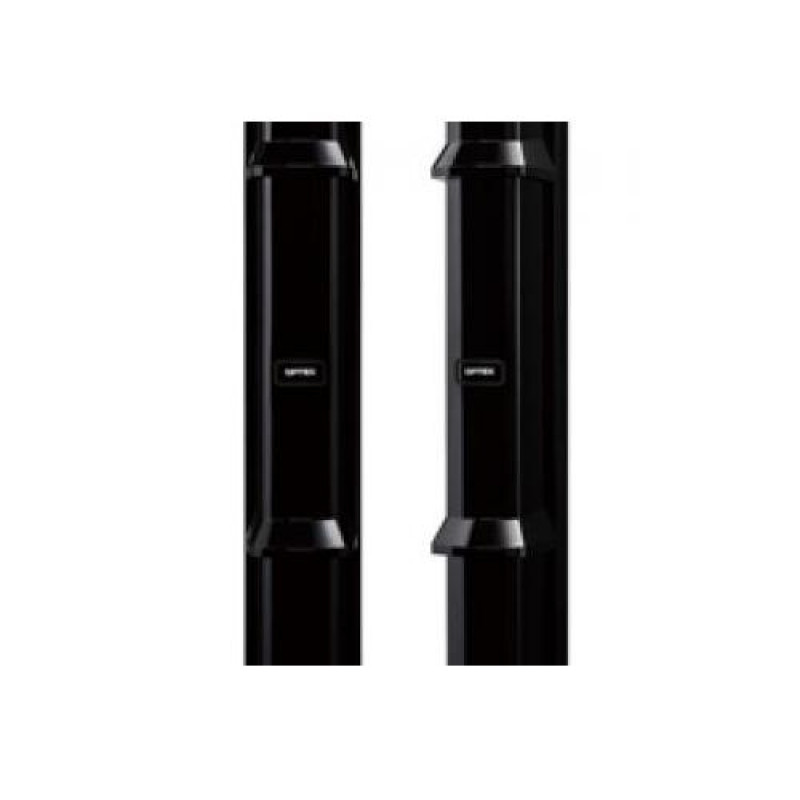

Optex, SL-200QN[C], Smart Line Quad Beam 60m Photo Beam Detector

Optex, SL-200QN[C], Smart Line Quad Beam 60m Photo Beam Detector

The new telescope lens has a high level of visibility for optical alignment work. We call Sniper viewfinder.

Features:

• Detection range 60m
• International protection IP65
• Alignment dial
• Sniper viewfinder with X2 magnification
• Vivid interior color
• Quad beam with aspherical lenses

Technical Specifications:

• Maximum detection range: 60m / 200ft
• Maximum arrival distance: 600m / 2000ft
• Detection method: Quad infrared beam interruption detection
• Interruption time: Variable between 50/100/250/500 ms (4 steps)
• Power source: 10.5 - 30VDC
• Current draw: 38mA (Transmitter:8mA Receiver:30mA)
• Alarm output: Form C relay : 30VDC, 0.2 A
• Alarm period: 2sec (±1) (Nominal)
• Tamper output: N.C. (contact output) : 30VDC, 0.1A Opens when cover removed
• Operating temperature: -25°C - +60°C (-13°F - 140°F)
• Operating humidity: 95% (max.)
• Alignment angle: ±90° Horizontal, ±10° Vertical
• Dimension: H x W x D mm (inch) : 448(17.6) x 79(3.1) x 96(3.8)
• International protection: IP65

For more details, please refer with our attached datasheet.
