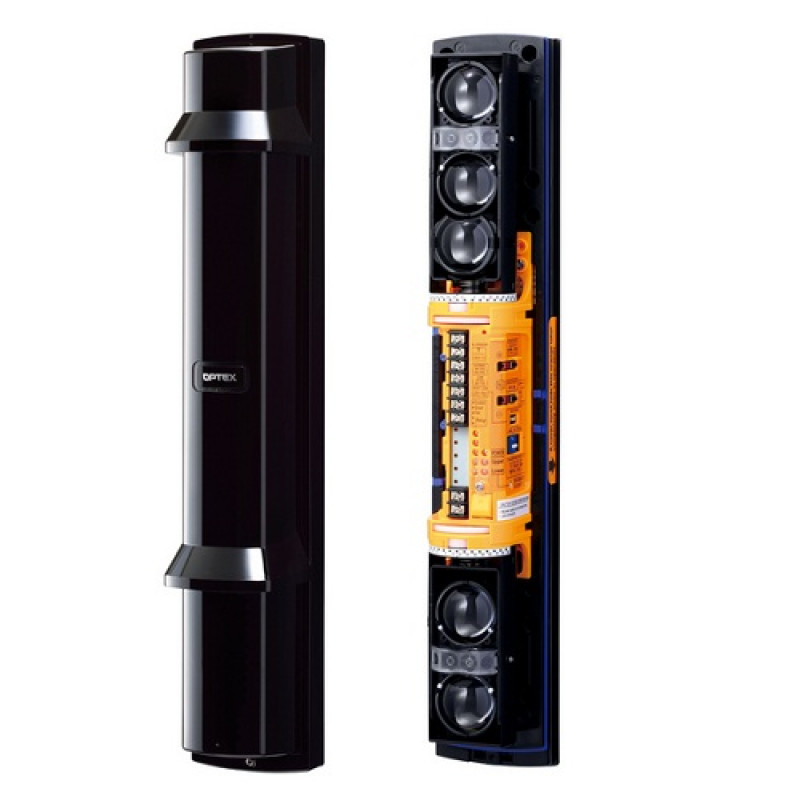

Optex, SL-200QDM[C], Smart Line Quad Beam 60m Photo Beam - 4 x CH - Master

Optex, SL-200QDM[C], Smart Line Quad Beam 60m Photo Beam - 4 x CH - Master

Infrared transmitter and receiver must be perfectly aligned to get the best operation of the Photoelectric Detector.

However, a lot of patience, time and effort are needed to ensure that the receiver is receiving the maximum possible amount of infrared signal emitted by the transmitter. Optex has the solution: the new SL series, which is designed to streamline your task while performing a perfect alignment.

Features:

• High-power quad beams
• Double modulation
• Beams Power Control Switch
• A.T.P.C - Automatic Transmit Power Control
• I.A.S.C - Communication Alignment Status Integrated
• Beam selection button - top / bottom
• Solar battery pack

Technical Specifications:

• Maximum detection range: 60 m / 200ft
• Maximum arrival distance: 600 m / 2000ft
• Detection method: Interrupt detection infrared beam Quad
• Frequency Channels: 4 selectable
• Interruption time: Variable between 50/100/250/500 ms (4 steps)
• Power source: 10.5 - 30VDC
• Alarm output: Form C relay : 30VDC, 0.2 A
• Alarm period: 2 sec (±1) (Nominal)
• Tamper output: N.C. (contact output) : 30VDC, 0.1A Opens when cover removed.
• Operating temperature: -35°C - +60°C (-30°F - 140°F)
• Operating humidity: 95% (max.)
• Alignment angle: ±90° Horizontal, ±10° Vertical
• Dimension: H x W x D mm (inch) : 448(17.6) x 79(3.1) x 96(3.8)
• International protection: IP65

For more details, please refer with our attached datasheet.
