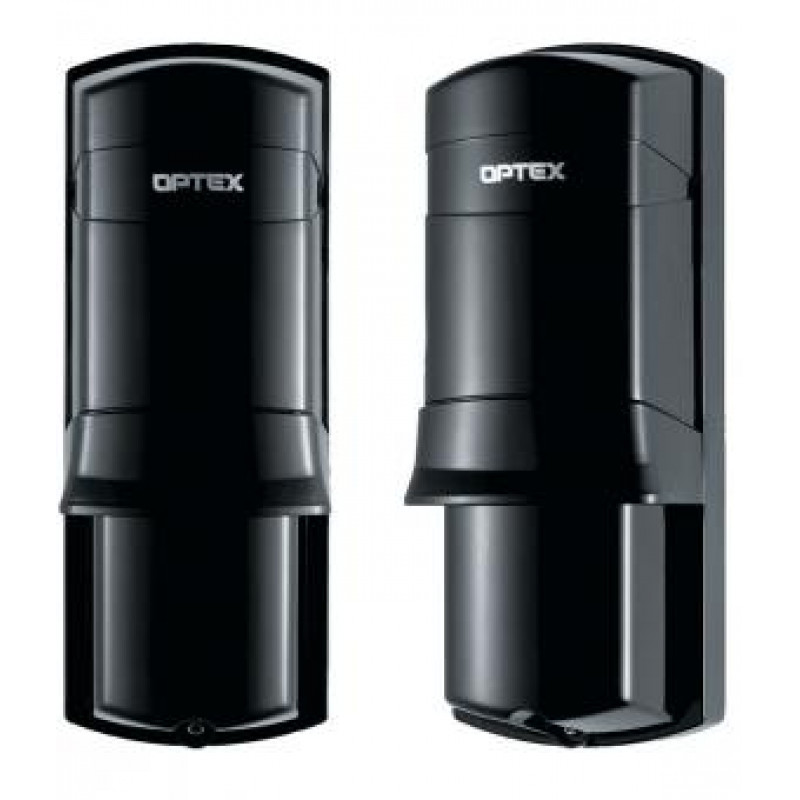

Optex, AX-200TN(BE), 200' Outdoor Dual Beam Photoelectric Detector

Optex, AX-200TN(BE), 200' Outdoor Dual Beam Photoelectric Detector

The AX-200TN short range photoelectric detector is compact in design with an IP65 highly durable structure and 200ft detection range. Rubber packing is used for all conceivable points where water, dust or bugs may penetrate, such as wiring holes, wire ports and the outer chassis. Preventing these factors helps deliver performance with higher reliability in severe outdoor environmental condition. In addition, the length between the upper and lower optics, and the width of the optics are ideally engineered to produce the most intelligent detection pattern which reduces false alarms by detecting human intruders only.

Features:

• IP65 structure
• Lightning and surge protection
• Anti-frost hood cover
• 99% beam blocking stability
• A.G.C circuit
• Adjustable beam interruption time

Technical Specifications:

• Maximum detection range: 60m
• Maximum arrival range: 600m
• Interruption period: Selectable between 50, 100, 250, and 500m sec.
• Power supply: 10.5 - 28V DC
• Current consumption (transmitter + receiver): 45mA (max.)
• Alarm period: 2 sec.(±1) nominal
• Alarm output: N.C. 28V DC 0.2A max
• Tamper switch: N.C. opens when cover is removed at 28V DC, 0.2A max.
• Operating temperature: -35°C to +60 °C Use the optional heating unit (HU-3) under the environment of -25°C or less minus.
• Environmental humidity: 95% max.
• Alignment angle: ±90° Horizontal, ±5° Vertical
• Mounting: Wall and pole mounting
• Dimensions (H x W x D): 170mm x 65mm x 69.5mm
• Weatherproof: IP65

For more details, please refer with our attached datasheet.
