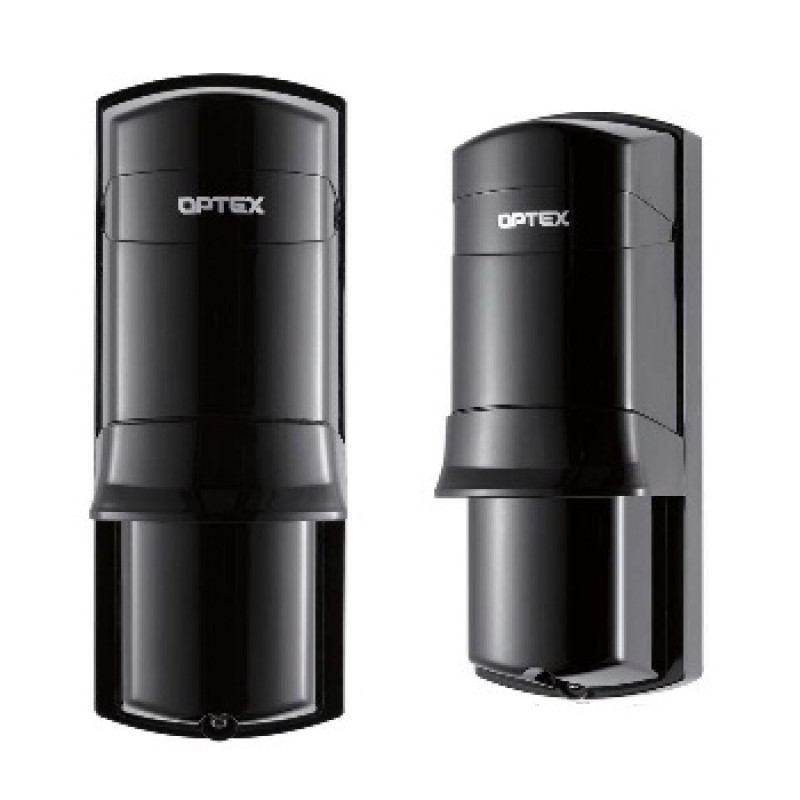

Optex, AX-200TF(BE), Short Range Photoelectric Detector - Detection Range 60m

Optex, AX-200TF(BE), Short Range Photoelectric Detector - Detection Range 60m

The AX-200TF Series of short range photoelectric detectors are compact in design with selectable beam frequencies. The selectable beam frequencies can be used to avoid unwanted crosstalk that can occur when using multiple photobeams over long distances or for beam stacking applications.

Also the AX-200TF Series carries the IP65 high durable structure, which prevents water, dust or bugs from getting into the unit. The ideal optical pitch design reduces false alarms due to accidental beam interruption by falling leaves, birds, and so on. These features deliver performance with higher reliability in severe outdoor environmental condition.

Features:

• Selectable 4 channel beam frequencies
• 4 step LED indicator
• Environmental disqualification circuit
• IP65 structure
• Lightning and surge protection
• Anti-frost hood cover
• 99% beam blocking stability
• A.G.C. circuit
• Adjustable beam interruption time

Technical Specifications:

• Maximum detection range: 60m
• Maximum arrival range: 600m
• Selectable beam frequencies: 4 channel
• Interruption period: Selectable between 50, 100, 250, and 500m sec.
• Power supply: 10.5 - 28V DC
• Current consumption (transmitter + receiver): 48mA (max.)
• Alarm period: 2 sec.(±1) nominal
• Alarm output: N.C./N.O. 28V DC 0.2A max.
• Tamper switch: N.C. opens when cover is removed at 28V DC, 0.2A max.
• Operating temperature: -35°C to +60 °C Use the optional heating unit (HU-3) under the environment of -25°C or less minus.
• Environmental humidity: 95% max.
• Alignment angle: ±90° Horizontal, ±5° Vertical
• Mounting: Wall and pole mounting
• Dimensions (H x W x D): 170mm x 65mm x 69.5mm
• Weatherproof: IP65

For more details, please refer with our attached datasheet.
