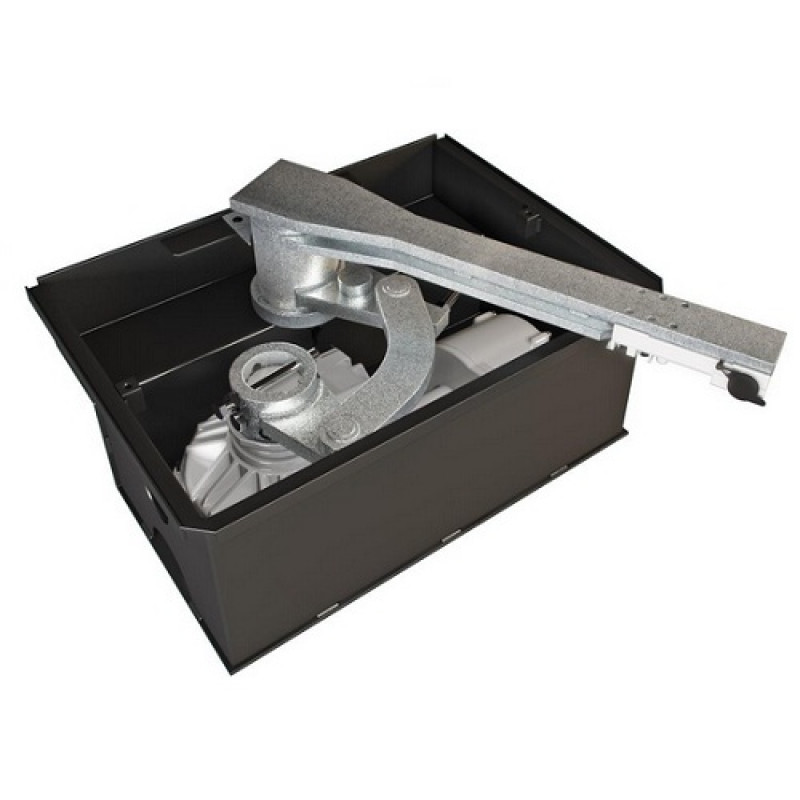

CAME (FROG-PM4) 230 V AC Frog Plus Swing Gate Motor - 5.5m Leaf

CAME (FROG-PM4) 230 V AC Frog Plus Swing Gate Motor - 5.5m Leaf

CAME's Frog Plus is the new underground solution for oversized swing gates typically found in commercial or industrial settings: army bases, prisons, hospitals etc. It is unmatched in terms of power and can even move large swing hangar doors.

• The invisible solution for the automation of the swing gate.
• High degree of protection (IP67) from weather agents.
• Built-in gate-leaf opening and closing stops for easily and quickly adjusting the gate-leaves end stops.
• Encoder technology for total movement control.

A power like no other
Frog Plus is “retracting” solution, ideal for automatic swing gates with very uncommon dimensions with leaves up to 7m in length or weighing 1100kg.

Resistant to everything!
The steel foundation box with anti-rust treatment and cataphoresis paint ensures Frog Plus is watertight. The IP67 protection rating against the elements makes it perfectly functional even in the worst situations.

Benefits

• For installers: self-learning of opening and closing end runs.
• For users: the latest generation electronics guarantees the most advanced functionalities for controlling the operator and safeguarding users, even with high transit flows.

Total control

• Self-diagnosis of safety devices
• Programming and function displays
• Run control and encoder obstacle detection
• Memorisation of radio controls with different codes (up to 250 users)
• Safety even when the gate is not moving. Each command is cancelled if an obstacle is detected by the safety devices

The new end run system
The foundation box and gearmotor are fitted as standard with adjustable mechanical end runs for opening and closing. An electromechanical end run (optional) is also available.

Interchangeable load-bearing pin
To facilitate preventive maintenance and ensure a long service life for the system.

Technical Specifications:

• IP protection rating: IP67
• Power supply (50 V - 60/60 Hz): 230 AC
• Motor power supply (50 V - 60/60 Hz): 230 AC
• Current draw (A): 5.1
• Power (W): 1200
• Opening time at 90° (s): 30
• Duty cycle (%): 50
• Thrust  (N): 800
• Operating temperature  (°C): -20 ÷ +55
• Motor thermo protection (°C): 150

Note: 7m Leaf is also available.

For more details, please refer with our attached Brochure.
