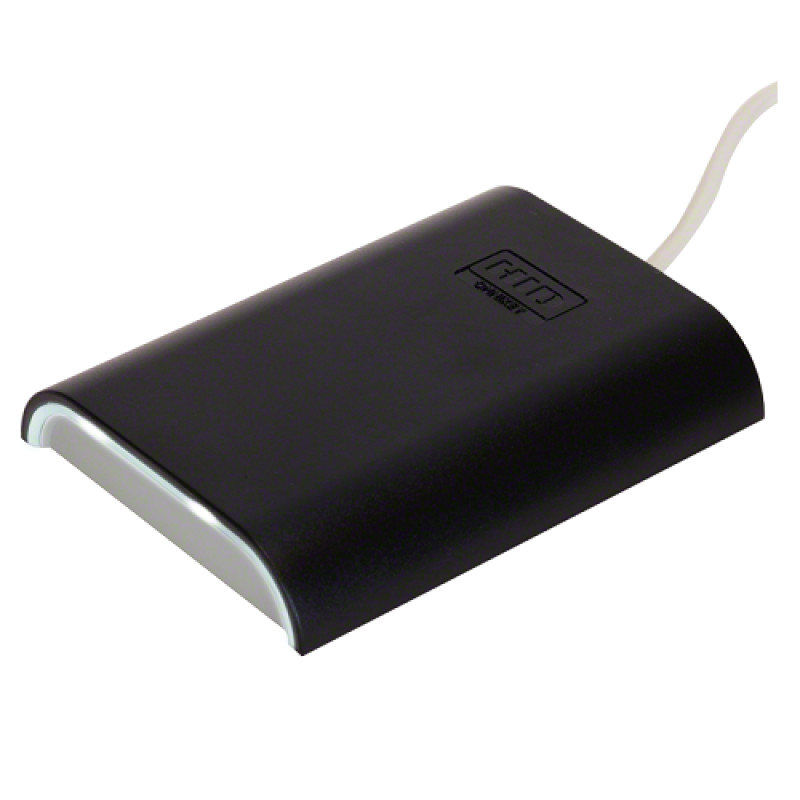

HID (R54270001) OMNIKEY 5427CK Reader with CCID and Keyboard Wedge

HID (R54270001) OMNIKEY 5427CK Reader with CCID and Keyboard Wedge

Dual frequency – Simultaneously supports low and high frequency credentials, including iCLASS Seos®, HID Prox®, iCLASS SE®, MIFARE Classic® and MIFARE® DESFire® EV1 as well as NFC.

Supports mobile access – Available with bluetooth interface to leverage HID Global’s mobile credentials to access computer, network, data or cloud.

Supports Seos® and iCLASS SE® Platform - Provides multi-layered security that extends beyond the card technology, offering additional protection to identity data.

Ease of use – Straightforward utilization of existing access control credentials for PC login in both CCID and Keyboard Wedge operation modes.

Keyboard Wedge support - Retrieves data from a card and presents the information directly to any application by emulating keyboard strokes.

HID Global\'s OMNIKEY® 5427CK Reader operates in virtually any PC environment. Independent of the operating system and use case, the reader’s CCID or Keyboard Wedge interface provides the ideal solution with no need to install or maintain drivers. This removes complex software lifecycle management issues in the field and accelerates time to market while allowing the user to become part of the iCLASS SE® platform. The platform offers a secure, standards based technology-independent and flexible solution based on Secure Identity Object (SIO), a new portable and open credential methodology. Thanks to its keyboard wedge functionality, data from the card can be retrieved and transformed for direct input into applications using keystroke emulation and therefore eliminates the need for organizations to manually enter card data into applications.

In addition to the standard CCID and Keyboard Wedge operation modes, the reader includes an integrated, easy-to-use web-based management tool that enables intuitive browser-based configuration without the need for special training. The reader supports two operational modes ensuring long term investment allowing to adapt CCID from keyboard wedge where a change to security requirements appears.

Key Features:

CCID Support

• Native CCID implementation supporting WINDOWS®, LINUX® and MAC® operating systems.

Keyboard Wedge

• Fully configurable and programmable keyboard wedge functionality featuring an integrated management console.
• Flexible configuration of data structures and output modes.
• Human Interface Device (HID) protocol allows reader configuration through host in keyboard Wedge mode
• Extended keyboard boot option for devices with limited USB device handling capabilities

Broad Credential Support

• Dual frequency functionality allowing support for both low and high frequency credentials simultaneously.
• HID Prox®, Indala® & EM Prox®, MIFARE® Classic, MIFARE DESFire® EV1, iCLASS®, iCLASS SE®, iCLASS® Seos™, iCLASS® Elite, and other SIO enabled credentials.
• Available with bluetooth interface to be used with HID mobile access credential  for IT Access.

Enhanced Lifecycle Management

• Easy firmware updates and configuration setting utilizing a Web interface, SNMP messages and configuration cards.
• Developer Tool Kit (DTK) available that contains product samples, development documentation, samples code and access to HID Global's developer portal.

For more details, please refer with our attached datasheet.
