TP-Link, TL-SG105PE, 5-Port Gigabit Easy Smart Switch with 4-Port PoE+

TP-Link, TL-SG105PE, 5-Port Gigabit Easy Smart Switch with 4-Port PoE+

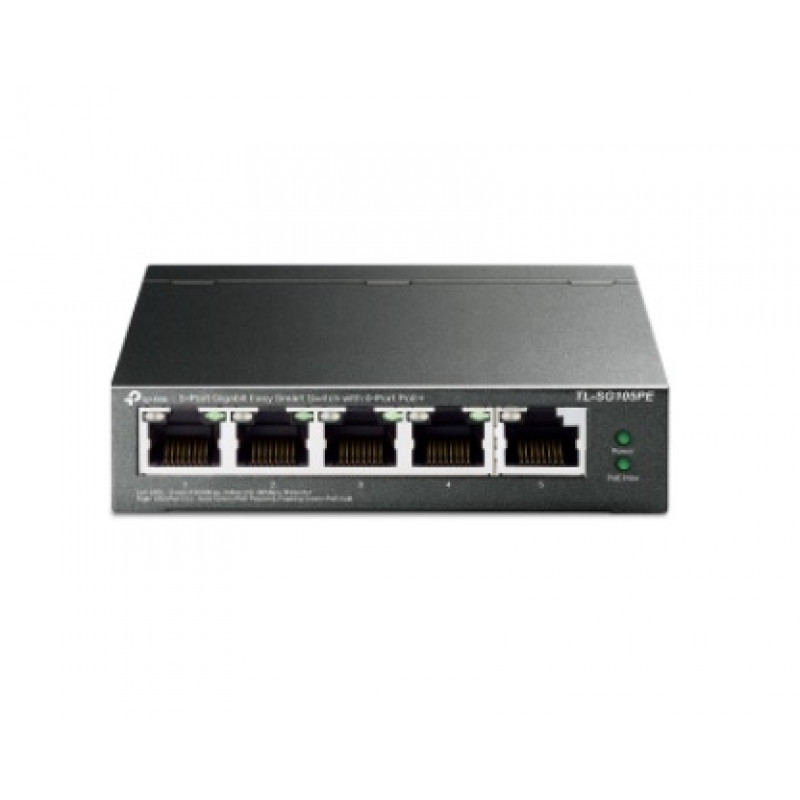

TL-SG105PE is 5-Port 10/100/1000Mbps Gigabit Easy Smart Switch with 4-Port PoE+. The TL-SG105PE is fully compatible with PoE devices, such as IP cameras, access points, and IP phones. It also works with non-PoE wired devices, such as PCs, printers, and IPTV.

Key Features:

• Five 10/100/1000Mbps RJ45 ports
• Equipped with four 802.3af/at PoE+ ports with up to 30W for each port, data, and power can be transferred on one single cable
• Supports PoE power up to 65 W for all PoE ports*
• Provides network monitoring, traffic prioritization, VLAN features, and PoE Auto Recovery
• Simple network set-up on top of plug-and-play connectivity
• Web-based user interface and Easy Smart Configuration Utility simplify configuration
• Fanless design lowers energy consumption and eliminates operating noise.

Specifications:

• HARDWARE FEATURES:
• Standards and Protocols
  • IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af,
  • IEEE 802.3x, IEEE 802.1q, IEEE 802.1p, IEEE 802.3at
• Interface -
  • Five 10/100/1000Mbps RJ45 Ports
  • AUTO Negotiation/AUTO MDI/MDIX
• Network Media -
  • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
  • EIA/TIA-568 100Ω STP (maximum 100m)
  • 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
  • EIA/TIA-568 100Ω STP (maximum 100m)
  • 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
  • EIA/TIA-568 100Ω STP (maximum 100m)
• Fan Quantity - Fanless
• Power Supply - External Power Adapter (Output: 53.5 VDC/1.31 A)
• PoE Ports (RJ45)
  • Standard: 802.3 af/at compliant
  • PoE Ports: Port 1- Port 4
  • PoE Power Budget: 65 W
• Dimensions ( W x D x H ) - 3.9 × 3.9 × 1.0 in (99.8 × 98 × 25 mm)
• Max Power Consumption -
  • 4.52 W (220V/50Hz with no PD connected)
  • 75.16 W (220V/50Hz with 65 W PD connected)
• Max Heat Dissipation:
  • 15.41 BTU/h (with no PD connected)
  • 256.30 BTU/h (with 65 W PD connected)
• PERFORMANCE:
• Switching Capacity - 10 Gbps
• Packet Forwarding Rate - 7.44 Mpps
• MAC Address Table - 2 K
• Packet Buffer Memory - 1.5 Mb
• Jumbo Frame - 16 KB
• SOFTWARE FEATURES:
• Quality of Service:
  • Support Port-Based/802.1p/DSCP priority
  • Support 4 priority queues
  • Rate Limit
  • Storm Control
• L2 Features:
  • IGMP Snooping V1/V2/V3
  • Static Link Aggregation
  • Port Mirroring
  • Cable Diagnostics
  • Loop Prevention
  • PoE Auto Recovery
  • Extend Mode
• VLAN - Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs) MTU/Port/Tag VLAN
• Management:
  • Web-based GUI
  • Easy Smart Configuration Utility
  • Transmission Method - Store-And-Forward
• OTHERS:
• Certification - FCC, CE, RoHS
• Package Contents
  • TL-SG105PE
  • Power Adapter
  • Installation Guide
  • Rubber Feet
  • System Requirements - Microsoft Windows for running Utility
• Environment
  • Operating Temperature: 0℃~40℃ (32℉~104℉)
  • Storage Temperature: -40℃~70℃ (-40℉~158℉)
  • Operating Humidity: 10%~90%RH non-condensing
  • Storage Humidity: 5%~95%RH non-condensing.
