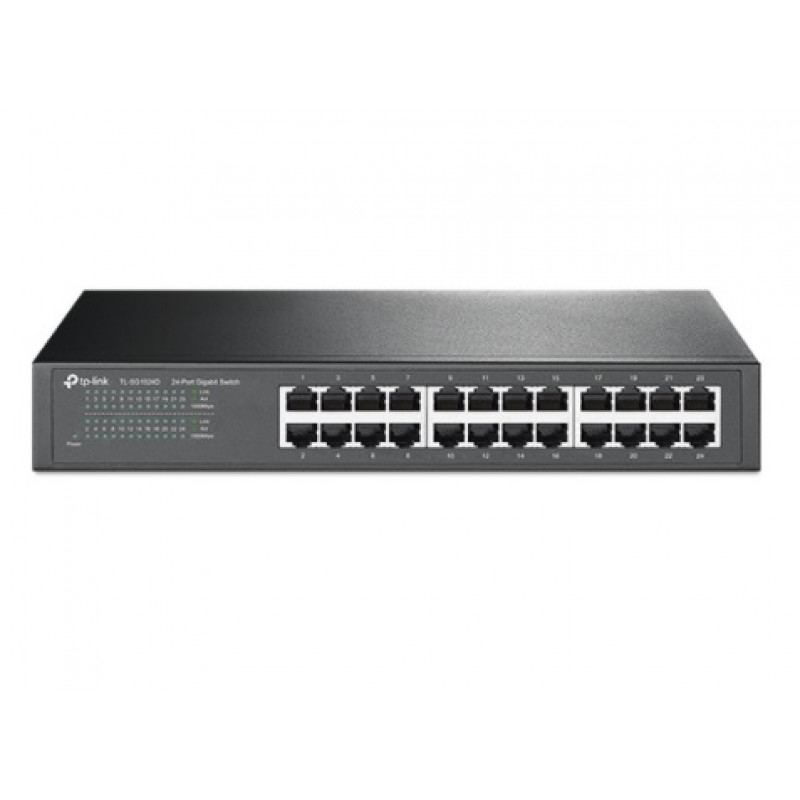

TP-Link, TL-SG1024D, 24 Port Desktop/Rackmount Gigabit Switch

TP-Link, TL-SG1024D, 24 Port Desktop/Rackmount Gigabit Switch

The TL-SG1024D 24-Port Gigabit switch provides an easy way to make the transition to Gigabit Ethernet. All 24 ports support auto MDI/MDIX, no need to worry about the cable type, simply plug and play. Moreover, with the innovative energy-efficient technology, the TL-SG1024D can save up to 20%* of the power consumption, making it an eco-friendly solution for your business network. Featured with 24 10/100/1000Mbps ports, TL-SG1024D greatly expands your network capacity, enabling instant large files transferring. So, power users in the home, office, workgroup, or creative production environment can now move large, bandwidth-intensive files faster. Transfer graphics, CGI, CAD, or multimedia files across the network instantly.

Key Features:

• 24 10/100/1000Mbps ports
• Innovative energy-efficient technology saves power consumption
• Supports MAC address self-learning, Auto MDI/MDIX and Auto negotiation
• Plug & play design.

Specifications:

• HARDWARE FEATURES
• Standards and Protocols - IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab , IEEE 802.3x
• Interface - 24 10/100/1000Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)
• Network Media
  • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
  • 100BASE-TX/1000BASE-T: UTP category 5, 5e or above cable (maximum 100m)
• Fan Quantity - Fanless
• Physical Security Lock - No
• Power Supply - 100-240VAC, 50/60Hz
• Power Consumption -Maximum: 13.1W (220V/50Hz)
• Dimensions -( W x D x H ) 11.6*7.1*1.7 in. (294*180*44 mm)
• Mounting - Rack Mountable
• Max Power Consumption - 13.62W(220V/50Hz)
• Max Heat Dissipation - 46.44BTU/h
• PERFORMANCE
• Switching Capacity - 48Gbps
• Packet Forwarding Rate - 35.7Mpps
• MAC Address Table - 8K
• Jumbo Frame - 10KB
• Green Technology - Yes
• Transfer Method - Store-and-Forward
• OTHERS
• Certification - FCC, RoHS
• Package Contents
  • 24-Port Gigabit Desktop/Rackmount Switch
  • Power Cord
  • Installation Guide
  • Rackmount Kits
  • Rubber Feet
• Environment
  • Operating Temperature: 0℃~40℃ (32℉~104℉);
  • Storage Temperature: -40℃~70℃ (-40℉~158℉);
  • Operating Humidity: 10%~90% non-condensing;
  • Storage Humidity: 5%~90% non-condensing

Contact us on sales@hunters-wholesalers.co.uk for more specific product information and pricing installation and training.
