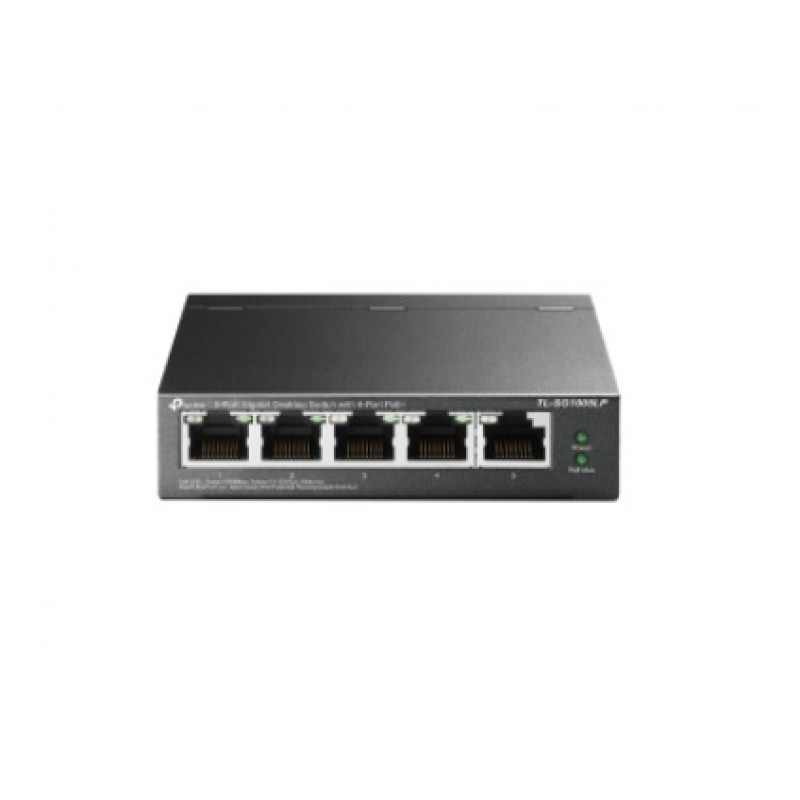

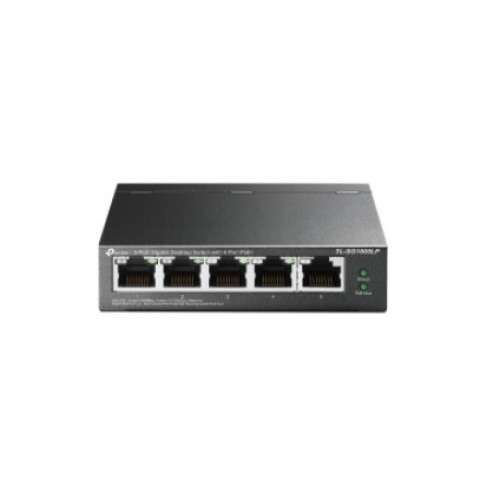

TP-Link, TL-SG1005LP, 5-Port Gigabit Desktop Switch with 4-Port PoE+

TP-Link, TL-SG1005LP, 5-Port Gigabit Desktop Switch with 4-Port PoE+

TL-SG1005LP is 5-Port 10/100/1000 Mbps RJ45 ports Gigabit Desktop Switch with 4-Port PoE+.

Key Features:

• 5× 10/100/1000 Mbps RJ45 ports
• With four PoE+ ports, transfers data and power on one single cable
• Works with IEEE 802.3af/at compliant PDs
• 802.1p/DSCP QoS enable smooth latency-sensitive traffic
• Supports PoE Power up to 30 W for each PoE port
• Supports PoE Power up to 40 W for all PoE ports*
• Plug and play, no configuration and installation required.

Specifications:

• HARDWARE FEATURES:
• Interface
  • 5× 10/100/1000Mbps RJ45 Ports
  • AUTO Negotiation
  • AUTO MDI/MDIX
• Network Media:
  • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
  • EIA/TIA-568 100Ω STP (maximum 100m)
  • 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
  • EIA/TIA-568 100Ω STP (maximum 100m)
  • 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
  • EIA/TIA-568 100Ω STP (maximum 100m)
• Fan Quantity - Fanless
• External Power Supply - External Power Adapter (Output: 53.5 VDC / 0.81 A)
• Packet Forwarding Rate - 7.44 Mpps
• PoE Ports (RJ45)
  • Standard: 802.3 af/at compliant
  • PoE Ports: Ports 1–4
  • Power Supply: 40 W
• Mac Address Table - 2K
• Jumbo Frame - 16 KB
• Switching Capacity - 10 Gbps
• Dimensions ( W x D x H ) - 3.9×3.9×1.0 in (99.8×98×25 mm)
• Max Power Consumption
  • 4.12 W (220/50 Hz. no PD connected)
  • 47.5 W (220/50 Hz. with 40 W PD connected)
• Max Heat Dissipation
  • 14.05 BTU/h (no PD connected)
  • 161.98 BTU/h (with 40 W PD connected)
• SOFTWARE FEATURES:
• Advanced Features
  • Compatible With IEEE 802.3af/at Compliant PDs
  • Mac Address Auto-Learning And Auto-Aging
  • IEEE 802.3x Flow Control
  • 802.1p/DSCP QoS
  • IGMP Snooping
• Transfer Method - Store-And-Forward
• OTHERS:
• Certification - FCC, CE, RoHS
• Package Contents
  • TL-SG1005LP
  • Power Adapter
  • Installation Guide
• Environment
  • Operating Temperature: 0–40 ℃ (32–104 ℉);
  • Storage Temperature: -40–70 ℃ (-40–158 ℉)
  • Operating Humidity: 10–90% RH non-condensing
  • Storage Humidity: 5–90% RH non-condensing.
