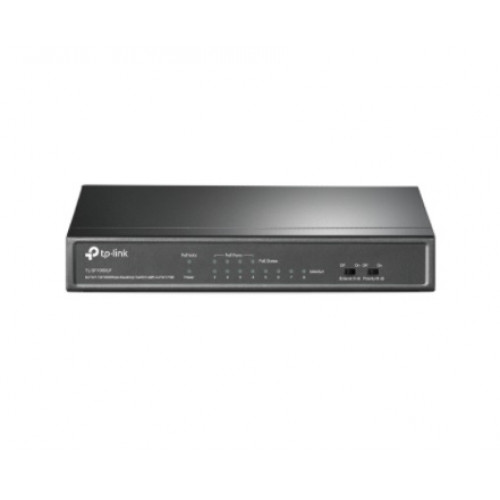

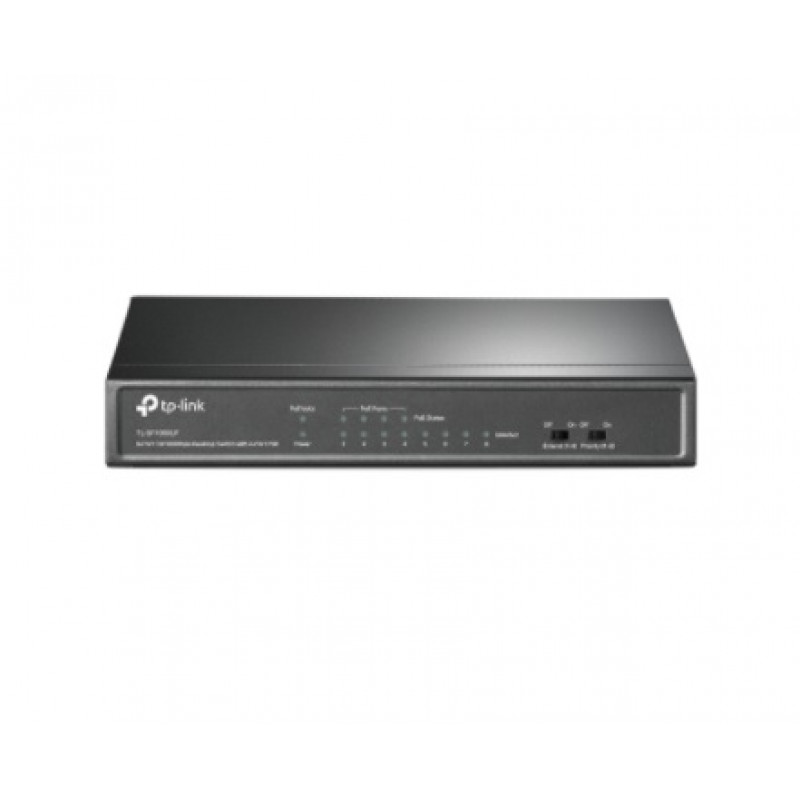

TP-Link, TL-SF1008LP, 8 Port 10/100M Desktop PoE Switch

TP-Link, TL-SF1008LP, 8 Port 10/100M Desktop PoE Switch

TL-SF1008LP is 8 Port 10/100Mbps PoE Desktop Switch with 4-Port PoE.

Key Features:

• 8× 10/100 Mbps RJ45 ports
• 4× PoE ports transfer data and power on individual cables
• Works with IEEE 802.3af compliant PDs
• Up to 250m data and power transmitting range under Extend Mode**
• Priority Mode ensures high priority of ports 1–2 to guarantee the quality of sensitive application
• Supports PoE Power up to 41 W for all PoE ports*
• Plug and play with no configuration required.

Specifications:

• HARDWARE FEATURES:
• Interface :
  • 8× 10/100 Mbps RJ45 Ports (Ports 1–4 support 802.3af PoE)
  • AUTO Negotiation
  • AUTO MDI/MDIX
• Network Media:
  • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
  • EIA/TIA-568 100Ω STP (maximum 100m)
  • 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
  • EIA/TIA-568 100Ω STP (maximum 100m)
• Fan Quantity - Fanless
• Physical Security Lock - Yes
• External Power Supply - External Power Adapter (Output: 53.5 V DC / 0.81 A)
• Packet Forwarding Rate - 1.1904 Mpps
• PoE Ports (RJ45):
  • Standard: 802.3 af compliant
  • PoE Ports: Ports 1–4
  • Power Supply: 41 W
• Backbound Bandwidth - 1.6 Gbps
• Mac Address Table - 2K
• Jumbo Frame - 2 KB
• Switching Capacity - 1.6 Gbps
• Dimensions ( W x D x H ) - 6.7 × 3.9 × 1.1 in (171 × 98 × 27 mm)
• Max Power Consumption:
  • 2.2 W (220 V/ 50 Hz. no PD connected)
  • 47.1 W (220 V/ 50 Hz. with 41 W PD connected)
• Max Heat Dissipation:
  • 7.5 BTU/h(no PD connected)
  • 160.61 BTU/h(with 41 W PD connected)
• SOFTWARE FEATURES:
• Transmission Method - Store-And-Forward
• Advanced Functions:
  • Compatible With IEEE 802.3af Compliant PDs
  • Extend Mode Button (Ports 1–4)
  • Priority Mode Button (Ports 1–2)
  • Mac Address Auto-Learning and Auto-Aging
  • IEEE802.3x Flow Control for Full-Duplex Mode and Backpressure for Half-Duplex Mode
• OTHERS:
• Certification - FCC, CE, RoHS
• Package Contents:
  • TL-SF1008LP
  • Power Adapter
  • Installation Guide
• Environment:
• Operating Temperature: 0–40 ℃ (32–104 ℉)
• Storage Temperature: -40–70 ℃ (-40–158 ℉)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing.
