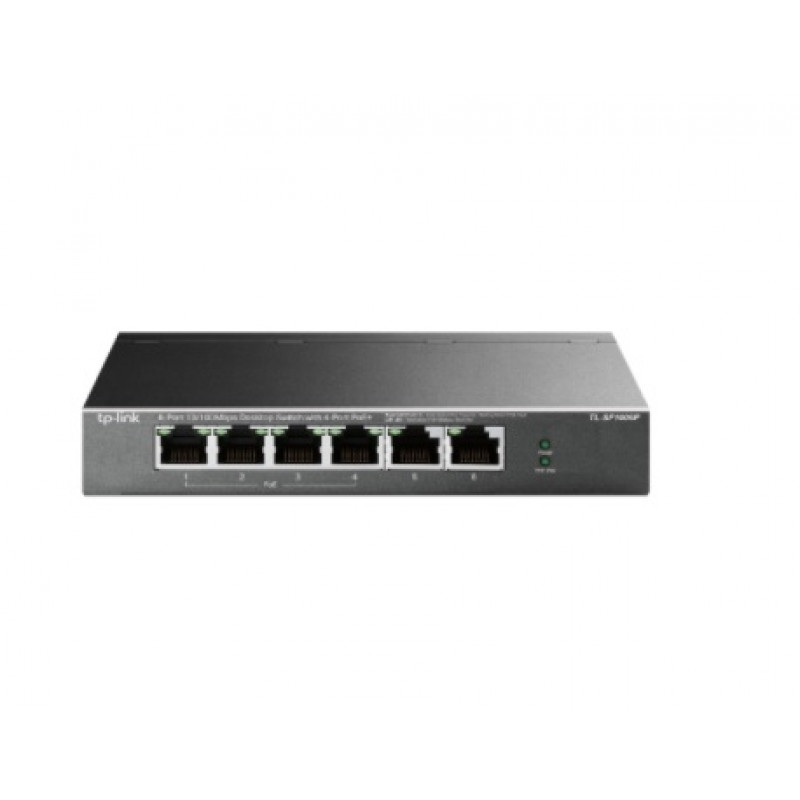

TP-Link, TL-SF1006P, 6-Port 10/100 Mbps Desktop Switch with 4-Port PoE+

TP-Link, TL-SF1006P, 6-Port 10/100 Mbps Desktop Switch with 4-Port PoE+

TL-SF1006P is 6-Port 10/100 Mbps Desktop Switch with 4-Port PoE+.

Key Features:

• 6× 10/100 Mbps RJ45 ports
• 4× PoE+ ports transfer data and power on individual cables
• Works with IEEE 802.3af/at compliant PDs
• Up to 250m data and power transmitting range under Extend Mode**
• Priority Mode ensures high priority of ports 1–2 to guarantee the quality of sensitive application
• Supports PoE Power up to 30 W for each PoE port
• Supports PoE Power up to 67 W for all PoE ports*
• Plug and play with no configuration required.

Specifications:

• HARDWARE FEATURES:
• Interface:
  • 6× 10/100 Mbps RJ45 Ports (ports 1–4 support 802.3af/at PoE+)
  • AUTO Negotiation
  • AUTO MDI/MDIX
• Network Media:
  • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
  • EIA/TIA-568 100Ω STP (maximum 100m)
  • 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
  • EIA/TIA-568 100Ω STP (maximum 100m)
• Fan Quantity - Fanless
• Physical Security Lock - Yes
• External Power Supply - External Power Adapter (Output: 53.5 V DC / 1.31 A)
• Packet Forwarding Rate - 0.8928 Mpps
• PoE Ports (RJ45)
  • Standard: 802.3 af/at compliant
  • PoE Ports: Ports 1–4
  • Power Supply: 67 W
• Mac Address Table - 2K
• Jumbo Frame - 2 KB
• Switching Capacity - 1.2 Gbps
• Dimensions ( W x D x H ) - 6.2 x 4.0 x 1.0 in (158 x 101 x 25 mm)
• Max Power Consumption -
  • 1.9 W (220 V / 50 Hz, no PD connected)
  • 74 W (220 V / 50 Hz, with 67 W PD connected)
• Max Heat Dissipation:
  • 6.48 BTU/h(no PD connected)
  • 252.34 BTU/h(with 67 W PD connected)
• SOFTWARE FEATURES:
• Transmission Method - Store-And-Forward
• Advanced Functions
  • Compatible With IEEE 802.3af/at Compliant PDs
  • Extend Mode Button (Ports 1–4)
  • Priority Mode Button (Ports 1–2)
  • Mac Address Auto-Learning and Auto-Aging
  • IEEE802.3x Flow Control For Full-Duplex Mode and Backpressure for Half-Duplex Mode
• OTHERS:
• Certification - FCC, CE, RoHS
• Package Contents
  • TL-SF1006P
  • Power Adapter
  • Installation Guide
• Environment
  • Operating Temperature: 0–40 ℃ (32–104 ℉)
  • Storage Temperature: -40–70 ℃ (-40–158 ℉)
  • Operating Humidity: 10–90% RH non-condensing
  • Storage Humidity: 5–90% RH non-condensing.
