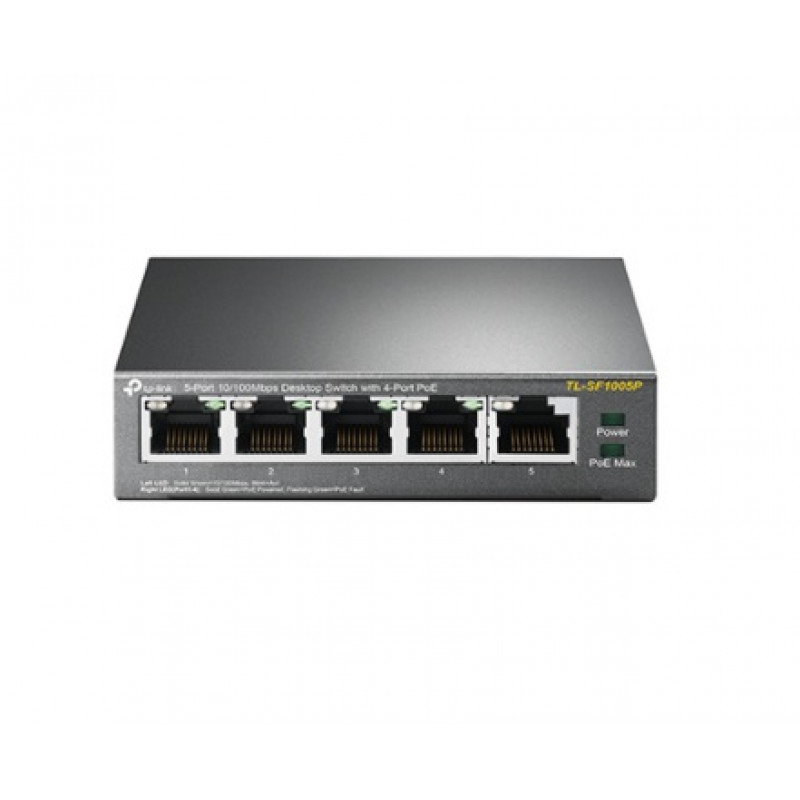

TP-Link, TL-SF1005P, 5-Port 10/100M Mini Desktop PoE Switch
- Brand:TP-Link
- Product Code:TL-SF1005P
- Availability:Please Call or Email Us to Check Availability
TP-Link, TL-SF1005P, 5-Port 10/100M Mini Desktop PoE Switch
TL-SF1005P is 5-Port 10/100M Mini Desktop PoE Switch.
Key Features:
- 5 10/100Mbps RJ45 ports
- With four PoE ports, transfers data and power on one single cable
- Working with IEEE 802.3af compliant PDs, expands home and office network
- Supports PoE Power up to 15.4W for each PoE port
- Supports PoE Power up to 58W for all PoE ports
- Requires no configuration and installation.
Specifications:
- HARDWARE FEATURES
- Interface
- 5 10/100Mbps RJ45 Ports
- AUTO Negotiation/AUTO MDI/MDIX
- Network Media
- 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
- EIA/TIA-568 100Ω STP (maximum 100m)
- 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
- EIA/TIA-568 100Ω STP (maximum 100m)
- Fan Quantity - Fanless
- External Power Supply - External Power Adapter(Output: 48VDC / 1.25A)
- PoE Ports (RJ45)
- Standard: 802.3af (15.4W)
- PoE Ports: Port1- Port4
- Total PoE Budget: 58W
- Mac Address Table - 2K
- Switching Capacity - 1Gbps
- Dimensions ( W x D x H ) - 3.9 × 3.9 × 1.0 in. (99.8 x 98 x 25 mm)
- Transmission Distance - Store-And-Forward
- Max Power Consumption
- 1.7W (no PD load)
- 64.8W (with 58W PD load)
- Max Heat Dissipation
- 5.7BTU/h(no PD load)
- 221.2BTU/h(with 58W PD load)
- SOFTWARE FEATURES
- Transmission Method - Store-And-Forward
- Advanced Functions:
- Compatible With IEEE 802.3af Compliant PDs
- Priority Function
- Mac Address Auto-Learning And Auto-Aging
- IEEE802.3x Flow Control For Full-Duplex Mode And Backpressure For Half-Duplex Mode
- OTHERS
- Certification - FCC, RoHS
- Package Contents:
- TL-SF1005P, Power Adapter, User Guide
- Environment:
- Operating Temperature: 0℃~40℃ (32℉~104℉)
- Storage Temperature: -40℃~70℃ (-40℉~158℉)
- Operating Humidity: 10%~90%RH non-condensing
- Storage Humidity: 5%~90%RH non-condensing.
Contact us on sales@hunters-wholesalers.co.uk for more specific product information and pricing installation and training.
