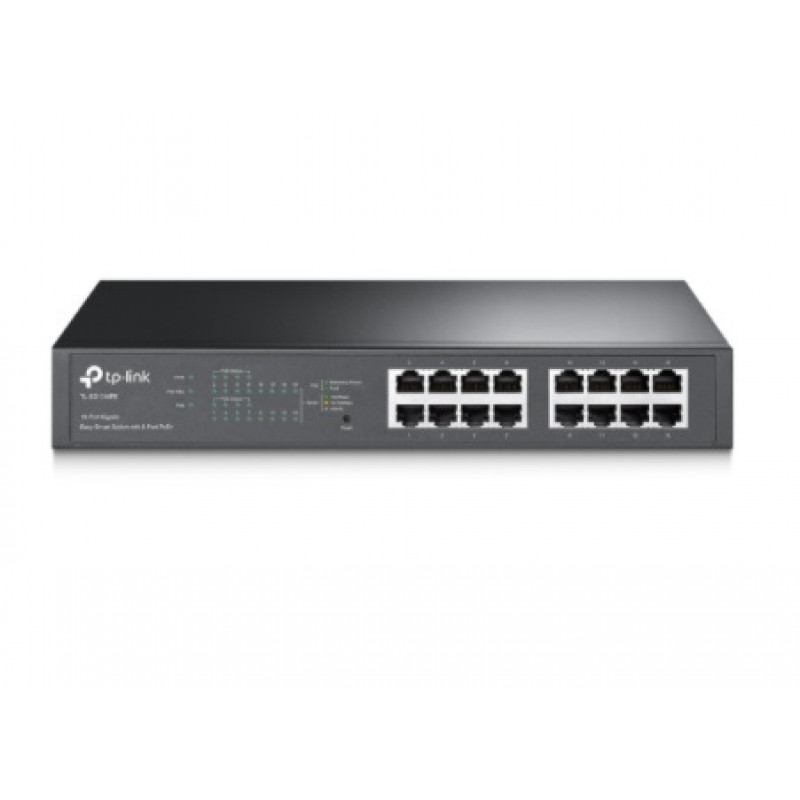

TL-SG1016PE, 16-Port Gigabit Desktop/Rackmount Switch with 8-Port PoE+

TP-Link, TL-SG1016PE, 16-Port Gigabit Desktop/Rackmount Switch with 8-Port PoE+

The TL-SG1016PE is a 16-Port Gigabit Desktop/Rack mountable Switch with 8 ports supporting the PoE+ standard. It provides a simple way to expand a wired network by transferring power and data over a single Ethernet Cable. With a total power budget of 110W, up to 30W per port, TL-SG1016PE can power more high-powered devices such as wireless Access Points (APs), IP Cameras or IP Phones. Moreover, with innovative energy-efficient technology, the TL-SG1016PE can save up to 75% of the power consumption, making it an eco-friendly solution for your business network.

Key Features:

• 16 10/100/1000Mbps RJ45 ports
• Equipped with 8 PoE+ supported ports to transfer data and power over a single cable
• With a total PoE power budget of 110W, up to 30W per port
• Works with IEEE 802.3af/at compliant devices, expanding home and office networks
• Simple network set-up on top of plug-and-play connectivity
• Web-based user interface and management utility simplify configuration.

Specifications:

• HARDWARE FEATURES:
• Standards and Protocols - IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p
Interface:
• 16 10/100/1000Mbps RJ45 Ports
• AUTO Negotiation/AUTO MDI/MDIX
• Network Media:
  • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
  • EIA/TIA-568 100Ω STP (maximum 100m)
  • 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
  • EIA/TIA-568 100Ω STP (maximum 100m)
  • 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
  • EIA/TIA-568 100Ω STP (maximum 100m)
• Fan Quantity - 1
• Physical Security Lock - Yes
• PoE Ports (RJ45):
  • Standard: 802.3 at (30W)
  • PoE Ports: Port 1- Port 8
  • Total PoE Power Budget: 110W
• Dimensions ( W x D x H ) - 11.6 × 7.1 × 1.7 in. (294 × 180 × 44 mm)
• Mounting - 13" and 19" 1U rack mountable
• Max Power Consumption - 14.7W (no PD load) 131.4W (with 110W PD load)
• Max Heat Dissipation - 50.2 BTU/h (no PD load) 448.4 BTU/h (with 110W PD load)
• PERFORMANCE:
• Switching Capacity - 32Gbps
• Packet Forwarding Rate - 23.8Mbps
• MAC Address Table - 8K
• Packet Buffer Memory - 4.1Mb
• Jumbo Frame - 9KB
• SOFTWARE FEATURES:
• Quality of Service
  • Support Port-Based/802.1p/DSCP priority
  • Support 4 priority queues
  • Rate Limit
  • Storm Control
• L2 Features:
  • IGMP Snooping V1/V2/V3
  • Link Aggregation
  • Port Mirroring
  • Cable Diagnostics
  • Loop Prevention
• VLAN - Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs) MTU/Port/Tag VLAN
• Management
  • Web-based GUI
  • Easy Smart Configuration Utility
  • POE Auto Recovery
  • Transmission Method - Store-And-Forward
• OTHERS:
• Certification - FCC, RoHS
• Package Contents
  • TL-SG1016PE
  • Power Cord
  • Installation Guide
  • Rackmount Kit
  • Rubber Feet
• Environment
  • Operating Temperature: 0℃~40℃ (32℉~104℉)
  • Storage Temperature: -40℃~70℃ (-40℉~158℉)
  • Operating Humidity: 10%~90% non-condensing
  • Storage Humidity: 5%~90% non-condensing.
