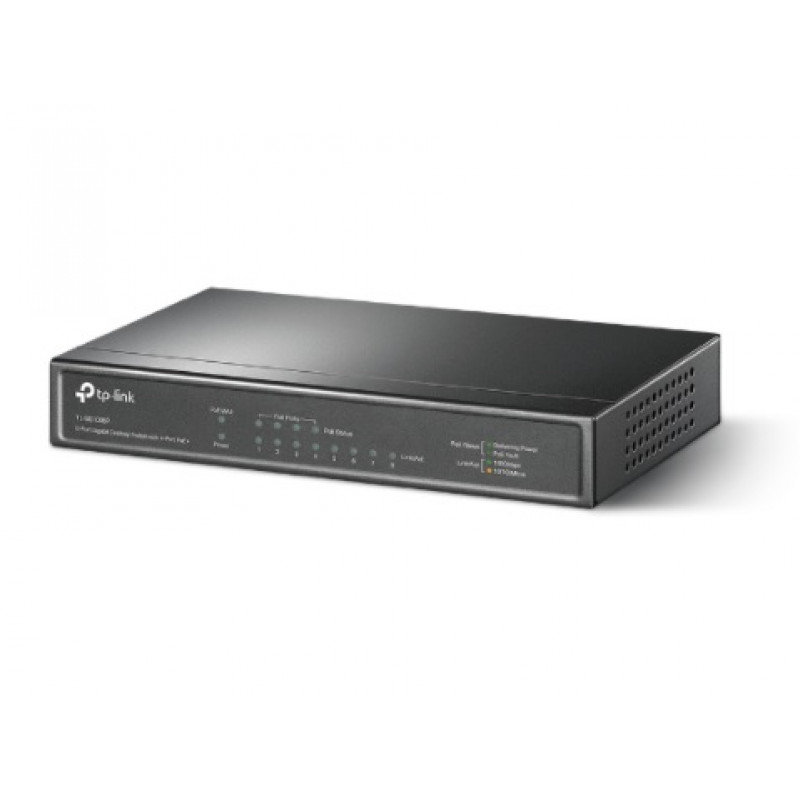

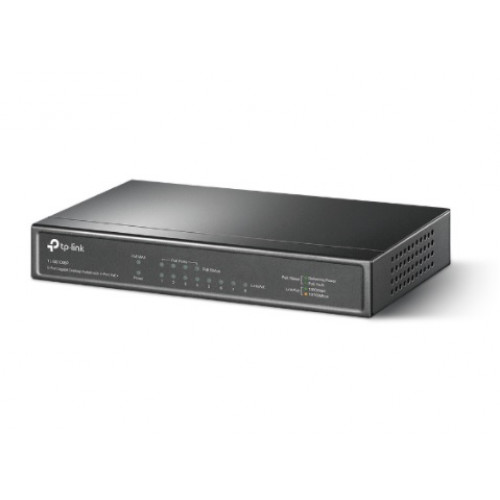

TL-SG1008P, 8-Port Gigabit Desktop PoE Switch with 4-Port PoE+

TP-Link, TL-SG1008P, 8-Port Gigabit Desktop PoE Switch with 4-Port PoE+

TL-SG1008P is 8-Port Gigabit Desktop PoE Switch with 4-Port PoE+.

Key Features:

• 8× 10/100/1000 Mbps RJ45 ports.
• 4× PoE+ ports transfer data and power on individual cables.
• Works with IEEE 802.3af/at compliant PDs.
• Plug and Play, no configuration and installation required.
• 802.1p/DSCP QoS enable smooth latency-sensitive traffic.
• Supports PoE power up to 30 W for each PoE port.
• Supports PoE power up to 64 W for all PoE ports.

Specifications:

• HARDWARE FEATURES:
• Interface:
  • 8× 10/100/1000 Mbps RJ45 Ports
  • AUTO Negotiation
  • AUTO MDI/MDIX
• Network Media:
  • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
  • EIA/TIA-568 100Ω STP (maximum 100m)
  • 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
  • EIA/TIA-568 100Ω STP (maximum 100m)
  • 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
  • EIA/TIA-568 100Ω STP (maximum 100m)
• Fan Quantity - Fanless
• Physical Security Lock - Yes
• External Power Supply - External Power Adapter(Output: 53.5VDC / 1.31A)
• Packet Forwarding Rate - 11.904 Mpps
• PoE Ports (RJ45)
  • Standard: 802.3 af/at compliant
  • PoE Ports: Ports 1–4
  • Power Supply: 64 W
• Mac Address Table - 4K
• Jumbo Frame - 16 KB
• Switching Capacity - 16 Gbps
• Dimensions ( W x D x H ) - 6.7×3.9×1.1 in (171×98×27 mm)
• Max Power Consumption:
  • 5.39 W (220/50 Hz no PD connected)
  • 75 W (220/50 Hz with 64 W PD connected)
• Max Heat Dissipation:
  • 18.38 BTU/h (no PD connected)
  • 225.75 BTU/h (with 64 W PD connected)
• SOFTWARE FEATURES:
• Transmission Method - Store-And-Forward
• Advanced Functions
  • Compatible With IEEE 802.3af/at Compliant PDs
  • IGMP Snooping
  • Mac Address Auto-Learning And Auto-Aging
  • IEEE802.3x Flow Control
  • 802.1p/DSCP QoS
• OTHERS:
• Certification - CE, FCC, RoHS
• Package Contents
  • TL-SG1008P
  • Power Adapter
  • Installation Guide
• Environment:
  • Operating Temperature: 0–40 ℃ (32–104 ℉);
  • Storage Temperature: -40–70 ℃ (-40–158 ℉)
  • Operating Humidity: 10–90% RH non-condensing
  • Storage Humidity: 5–90% RH non-condensing.

Contact us on sales@hunters-wholesalers.co.uk for more specific product information and pricing installation and training.
