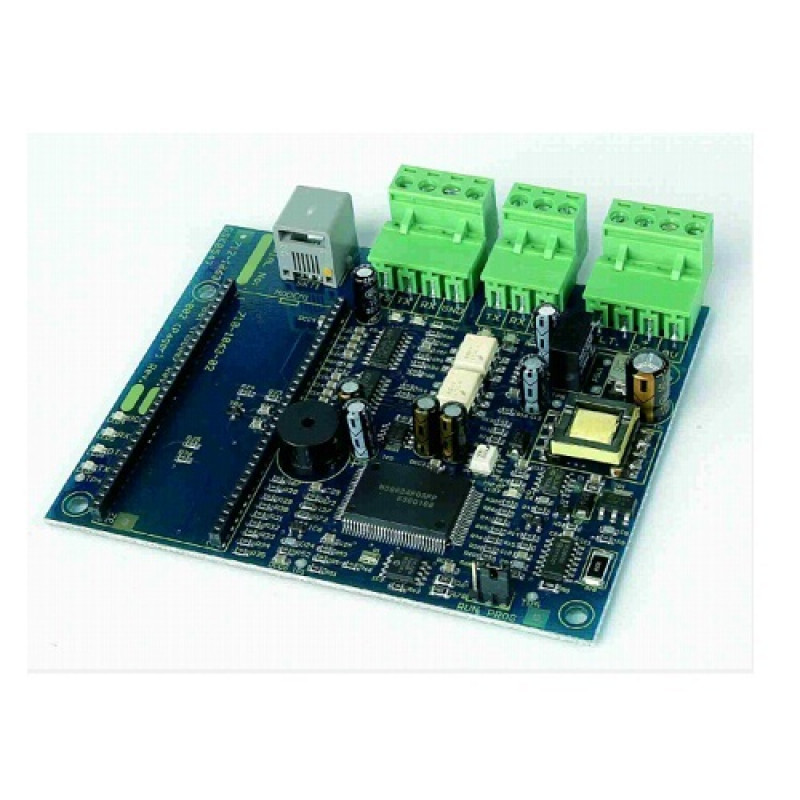

MXPRO (MXP-547) ESPA Pager Interface Card for Elan
The Pager Interface is a programmable interface providing connectivity of third party paging systems to the MxPro 5 control equipment. It utilises the industry standard protocol ESPA 4.4.4 and connects to the equipment via a serial data connection. An optional input function is available to monitor pager fault conditions. Specific event types (e.g. Fire, Alarm, Pre- Alarm, Fault, etc.) can be sent to individual pagers and/or to groups of pagers.
Key Features:
Specifications:
Power supply | 15-30V DC (e.g. wired from panel 24V auxiliary supply) |
Supply current | 100mA (typical at 24V DC) |
Temperature | -5°C to 50°C |
Humidity | 95% humidity (non condensing) |
Dimensions H x W x D mm | Enclosure: 218 x 300 x 45 |
Pager Interface | RS232 galvanically (opto) isolated |
Fault Input | Non-monitored/monitored (10K EOL, 470R active) |
Event Types Supported | Fire Alarm, Test Alarm, Plant Alarm, Pre-Alarm, Fault and Disablement |
