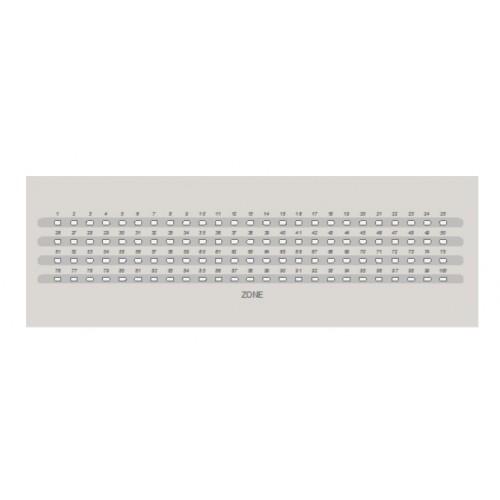

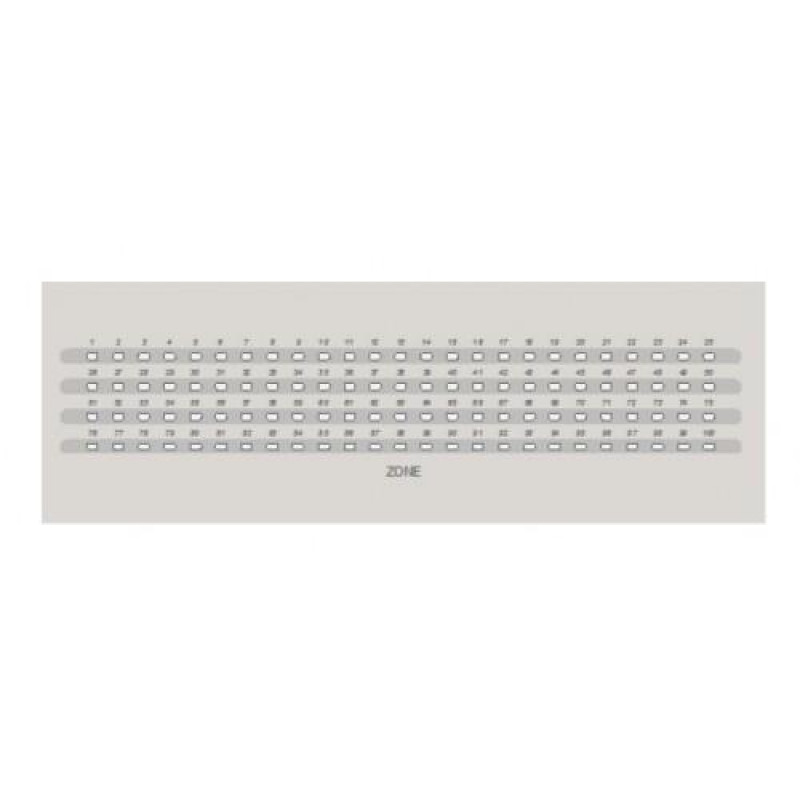

MXPRO, MXP-013-100F, 100 Way Zone LED Card Factory Fitted to Panel

MXPRO, MXP-013-100F, 100 Way Zone LED Card Factory Fitted to Panel

(1 Week Delivery Timeline Expected for this Item)

The Zonal LED indicator cards are a range of panel mounted peripheral modules that can be added to the MxPro 4 series of control panels. The display cards are available in numerous configurations and provide individual indication of the zone(s) in fire.

The units fully support dynamic zoning on networked or larger stand alone systems and can be used to provide individual zonal LED indication at one location.

20 zone units are available which are fitted to the front display plate on the MxPro 4 series control panel. The Mxp-013-050F, Mxp-013-100F and Mxp-013-200F incorporate 50, 100 or 200 LED indicators respectively and are compatible with all MxPro 4 series multiloop panels.

The cards are capable of simultaneously displaying all zones in a fire condition and incorporate a unique power saving feature to minimise the power drawn from the control panel in the event of a major fire.  Several other options are also available within the MxPro 4 range for applications where indication of fire signals from zones in addition to the panels graphical display is required. These options include Advanced Mimic Units, graphical systems and printers.

Key Features:

• Up to 200 zones available
• Factory fitted or retro fit
• Dynamic zoning
• Cost effective against ancillary hardware
