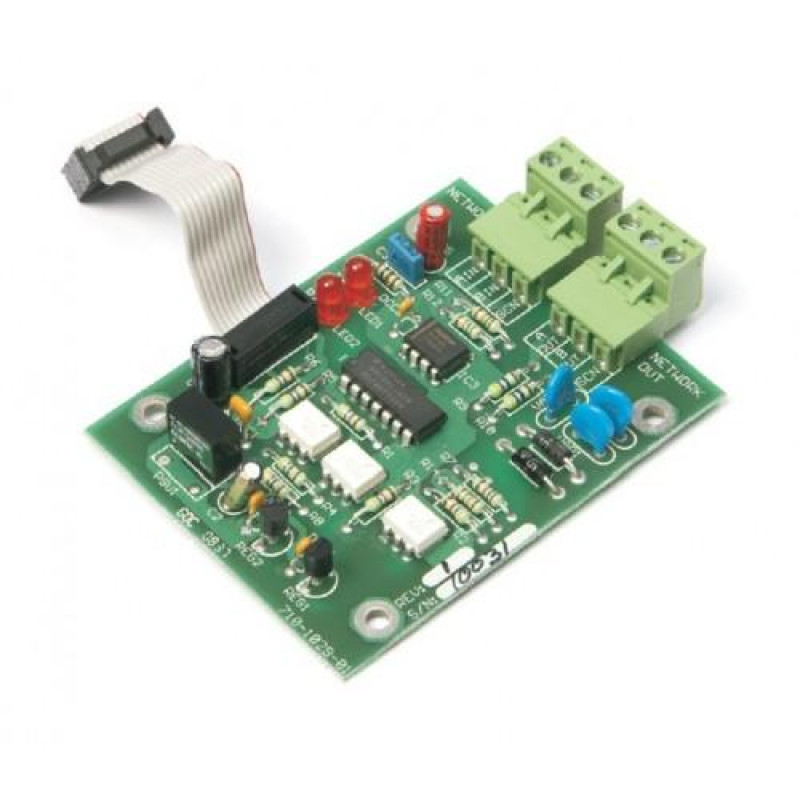

MXPRO, MXP-003(F), Standard Network Card Fitted to MxPro 4 Control Panel

MXPRO, MXP-003(F), Standard Network Card Fitted to MxPro 4 Control Panel

(1 Week Delivery Timeline Expected for this Item)

The Ad-NeT network system allows all MxPro 4 series control panels, remote terminals and network peripherals to be connected together using standard fire resistant two-core cable. It provides both the benefits of distributed intelligence and reduced installation costs whilst catering for the smallest two-panel network through to the largest 200 panel wide area networked system.

The network operates as a true peer-to peer system allowing information from any input or output device to be passed over the network and displayed on any MxPro 4 control panel or remote terminal as required.

Simply adding and connecting a network card allows any MxPro 4 control panel or remote terminal to be networked. All other nodes on the Ad-NeT system will be instantly aware of a panel as soon as it is given a valid network node address, allowing additional panels to be added at any time. All panels incorporate a network analyser providing valuable diagnostic and status information and also have the facility to prevent the transmission of fires or faults during commissioning.

Limitations:

Standard Network The maximum total cable length is 1.5km. The maximum number of network nodes is 32 (50 with signal buffer)

Key Features:

• True Peer to Peer
• Large Ad-NeT+ 200 Panel Network
• Up to 1.5Km between Control Panels
• Windows based PC setup
• Network Systems share up to 1000 zones
• Network Analysis from Control Panel

For more details, please refer with our attached datasheet.
