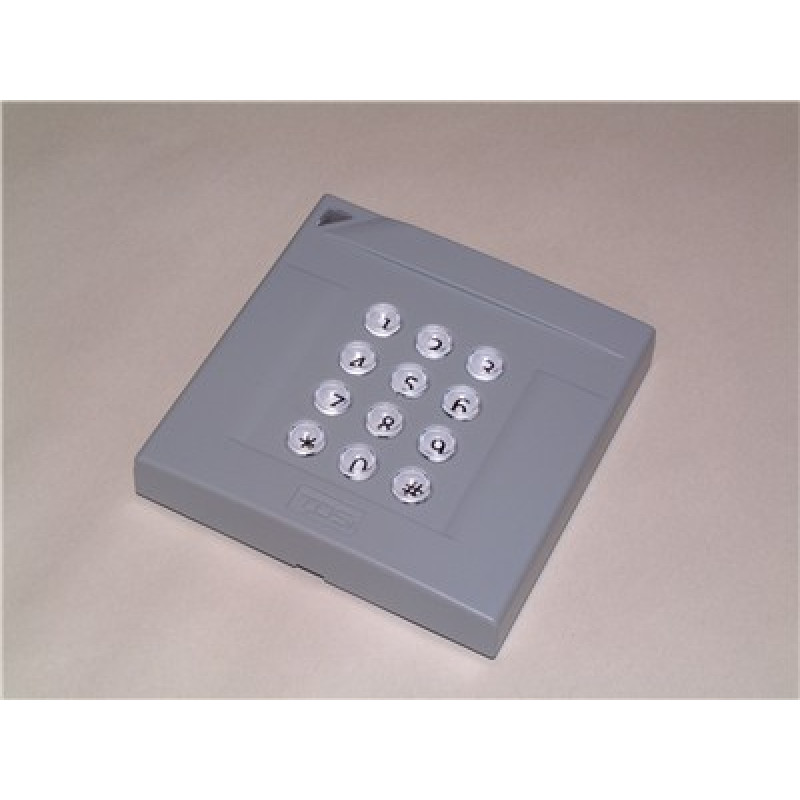

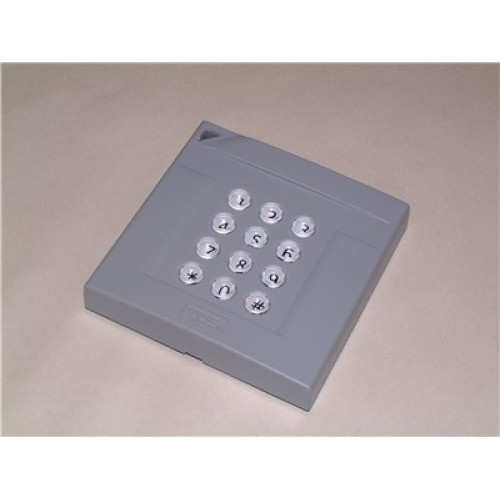

TDSI, 5002-0436, EXsmart2 K Square MIFARE CSN Reader with Keypad

TDSI, EXsmart2 K Square MIFARE CSN Reader with Keypad (5002-0436)

Drawing on the proven Mifare smartcard technology, this high quality system has a combined reader and keypad, providing added security if desired by requiring both the card to be presented and the PIN to be entered before access is allowed. The reader can be flush mounted into a standard electrical box.

EXsmart2 is a range of high-performance contactless MIFARE® smart card readers from TDSi. Available with or without a backlit tactile keypad, EXsmart2 is designed to be mounted in a standard electrical back-box making for a neat and simple installation. All products are supplied with a choice of covers allowing the look of the reader to be changed to suit its surroundings.

Key Features:

• Combination of reader and card
• Wide range of mounting methods
• Mifare smartcard technology
• Blue back-lit keypad

Key Benefits:

• Choice of options to meet individual requirements
• Fast and easy to install, commission and operate

Specifications:

• Dimensions: 102 x 102 x 20 mm. Connector including terminal block protrudes by 11 mm from rear face.
• Weight: 270 g
• Operating environment:  -20°C to +55°C, 0 to 95 %RH (non-condensing)
• Power supply: 9 to 16 VDC, 100 mA max
• Operating frequency: 13.56 MHz (nominal)
• Card technology: ISO14443-A: MIFARE Standard (1k) MF1 ICS50, MIFARE (4k), MF1 ICS70
• Sounder: Integral with external control
• LEDs :2 ­red and green both with independent external control. Bi-colour input capability for connection to TDSi access control units.
• Read range: 50 mm (nominal) with ISO card
• Output formats: Mag stripe, 26-bit Wiegand

For more details, please refer with our attached datasheet.
