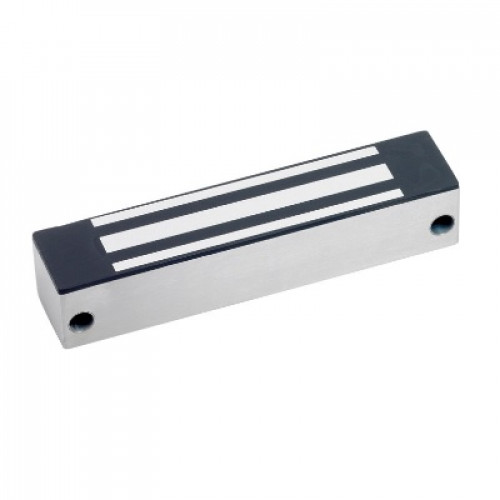

SSP, G600SM-12, Stainless Steel Cased Maglock, Monitored
- Brand:SSP
- Product Code:G600SM-12
- Availability:Please Call or Email Us to Check Availability
SSP, G600SM-12, Stainless Steel Cased Maglock, Monitored
The G600S & G600SM magnetic lock is totally sealed in an epoxy sealed stainless steel case. Up to 800lb holding force. It can be applied with access control.
Key Features:
- Weatherproof
- Holding force up to 800lbs
- Stainless steel
- Surface mount
- Monitored (G600SM)
- MOV provides spike & surge protection
- Stainless steel case
- Anti-residual magnetism function
- Fail-safe (power to lock)
- High reliability
- GS600S-12 – Unmonitored
- GS600SM-12 – Lock monitoring
Specifications:
- Voltage 12 VDC
- Current Draw: 420mA@12Vdc
- Magnetic bond sensor (G600SM)
- Operating Temperature: -10~55C (14~131F)
- Holding Force Up to 600lbs (272kg)
- Dimensions: Magnet (L)232. (W)45. (D)30mm, Armature: (L)185. (W)45. (D)14.mm
- Epoxy Potting Compound: E87252 (S), UL94V-0
Contact us on sales@hunters-wholesalers.co.uk for more specific product information and pricing installation and training.
