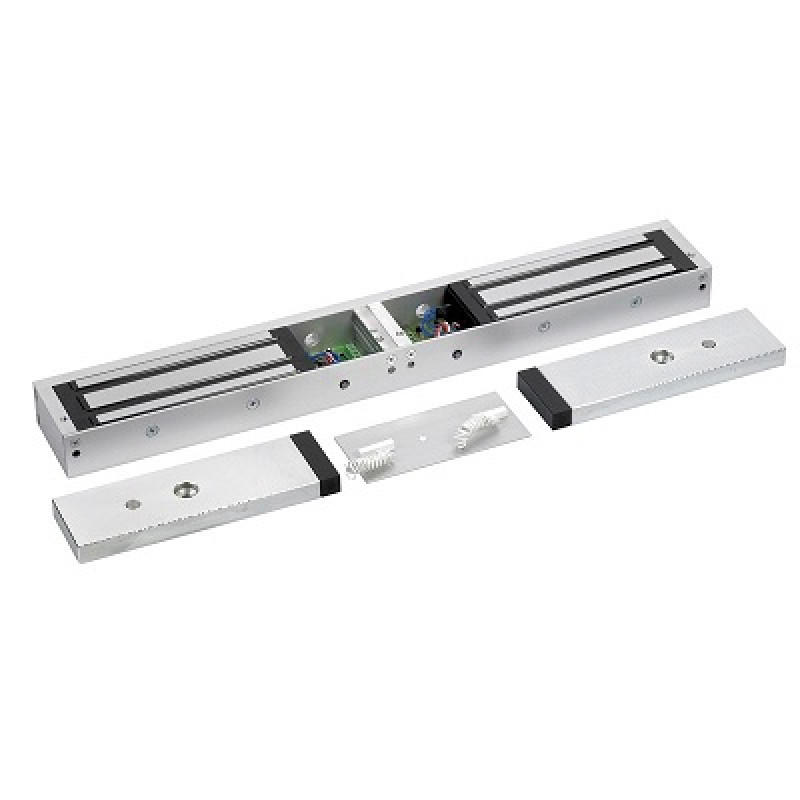

SSP, EM60DS, Double Standard Maglock, Unmonitored w/ Door Status Monitoring

SSP, EM60DS, Double Standard Maglock, Unmonitored with Door Status Monitoring

Standard, unmonitored, double magnetic lock, designed for indoor applications where 545kg holding force is required. This model includes door status monitoring contacts to monitor the door position (open or closed).

Key Features:

• MOV provides spike and surge protection
• Fail-safe operation (power to lock)
• Anti-residual magnetism protection
• Top-plate, armature-plate and fixings included
• Dual voltage 12Vdc or 24Vdc (selectable)
• Surface mount
• Silver anodised aluminium finish

Technical Specification:

• Holding force: up to 545kg (1200lb) per side
• Current draw = 500mA @ 12Vdc / 250mA @ 24Vdc per side
• Voltage tolerance: +/- 15%
• Operating temp: -10°C to +55°C
• Humidity: 0-95% non-condensating
• Reed switch door contact (one per side)
