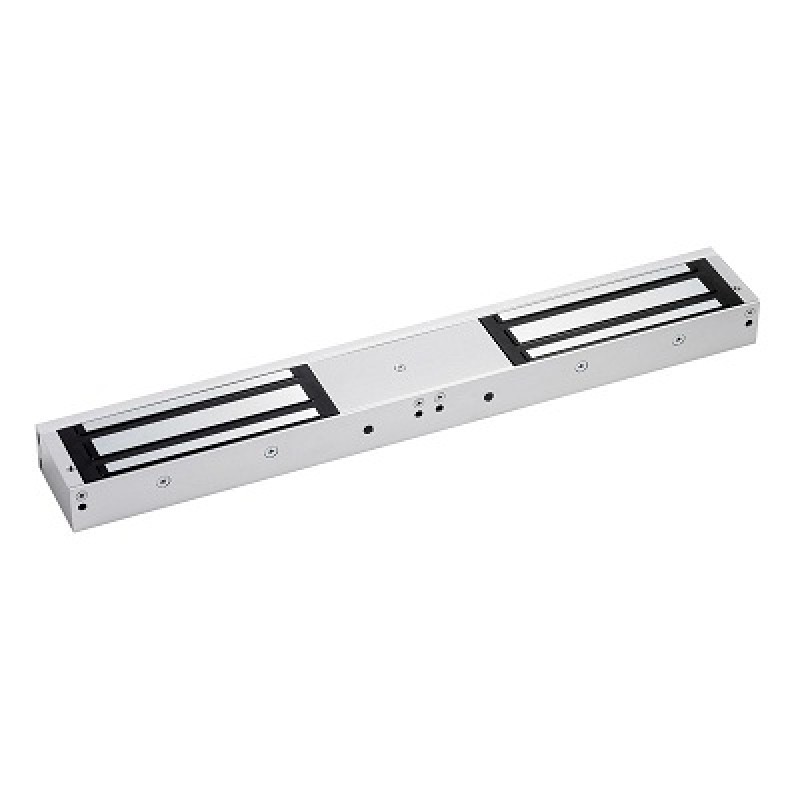

SSP, EM40, Double Standard Maglock, Monitored

SSP, EM40, Double Standard Maglock, Monitored

The EM40 Standard monitored Double Magnetic lock, designed for Indoor applications where 545kg holding force is required. Monitoring provides LED lock status indication and relay contacts for signalling.

Key Features:

• MOV provides Spike and Surge protection
• Fail-safe Operation (power to lock)
• Anti-residual Magnetism protection
• Top-plate, Armature-plate and Fixings included
• Dual Voltage 12Vdc or 24Vdc (selectable)
• Surface Mount
• Silver Anodised Aluminium finish
• Lock Monitoring

Technical Specification:

• Holding Force: up to 545kg (1200lb) per side
• Current Draw = 500mA @ 12Vdc / 250mA @ 24Vdc per side
• Voltage Tolerance: +/- 15%
• Operating Temp: -10°C to +55°C
• Humidity: 0-95% Non-condensating
• Relay: COM/NO/NC (1A@ 24Vdc) (one per side)
