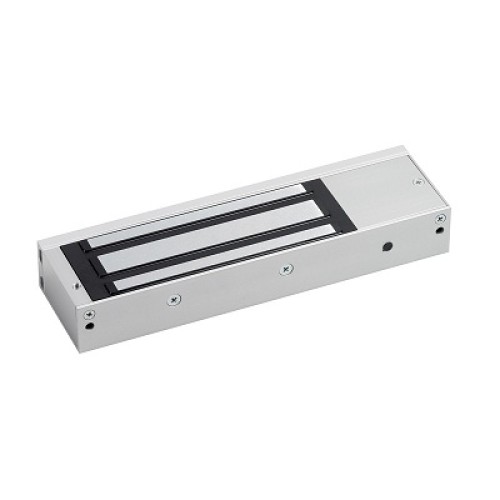

SSP, EM20, Single Standard Maglock, Monitored

SSP, EM20, Single Standard Maglock, Monitored

The EM20 Standard single Monitored magnetic lock, designed for Indoor applications where 545kg holding force is required. Monitoring provides LED lock status indication and relay contacts for signalling.

Key Features:

• MOV provides Spike and Surge protection
• Fail-safe operation (power to lock)
• Anti-residual Magnetism protection
• Top-plate, Armature-plate and Fixings included
• Dual Voltage 12Vdc or 24Vdc (selectable)
• Surface Mount
• Silver Anodised Aluminium finish
• Lock Monitoring

Technical Specification:

• Holding Force: up to 545kg (1200lb)
• Current Draw: 500mA @ 12Vdc / 250mA @ 24Vdc
• Voltage Tolerance: +/- 15%
• Operating Temp: -10°C to +55°C
• Humidity: 0-95% Non-condensating
• Red/Green LED Indicator
• Relay: COM/NO/NC (1A@24Vdc)
