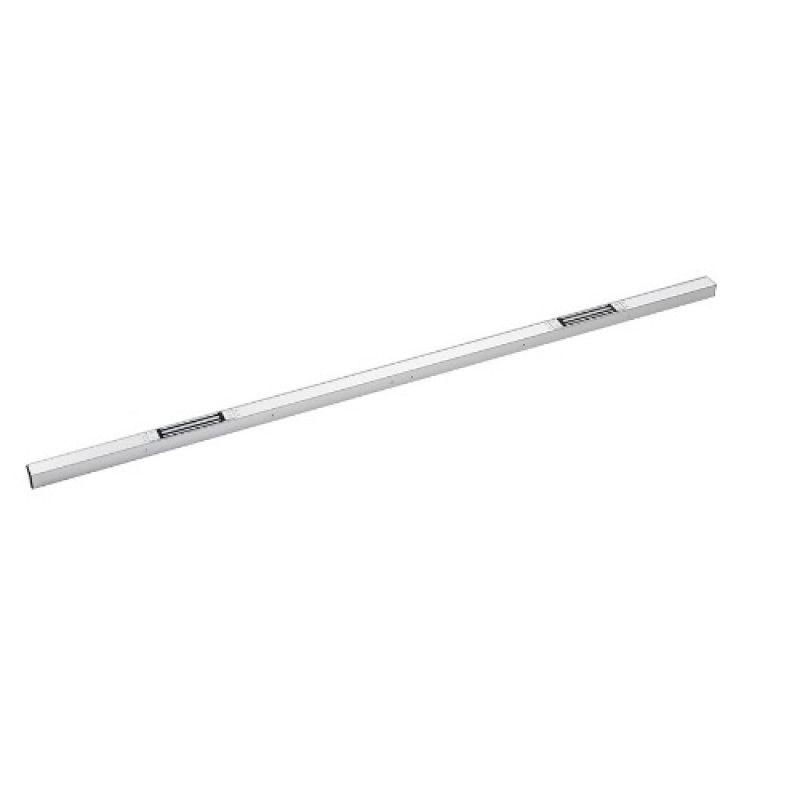

SSP, EM-AH2/2V-DS,2m Slim V-Housing 2 Cut Outs W/ Door Status Monitoring

SSP, EM-AH2/2V-DS, 2m Slim Vertical Housing 2 Cut Outs W/ Door Status Monitoring

The EM-AH2/2V-DS is 2 Meter Slim Architectural Housing for Vertical installation to the door frame, providing aesthetically pleasing and safe method of installing two Maglocks to the door. Maglocks are positioned towards the top and bottom to provide maximum strength. Includes door status monitoring contacts. Requires 2 x EM00 or EM00R maglocks.

Key Features:

• Top Plate included for Transom Mounting
• Surface Mount
• Slim Housing for Two Slim Maglocks
• Satin Anodised Aluminium finish (other finishes on request)
• Can be cut to required length
• Black Plastic end caps included
• Enables Concealment of wiring
• Door Status Monitoring

Technical Specification:

• 46.5mm Box Section
• Radius Edged
• Compatible with EM00 and EM00R Maglocks which must be ordered in addition (2 required)
• Door contacts:
  • Voltage Range 1-100 Vdc
  • Max Switching Current 500 mAdc
