RGL ML600-MDS, Slimline Mini Magnet 600 lbs (280 kg) Holding Force

RGL ML600-MDS, Slimline Mini Magnet 600 lbs (280 kg) Holding Force

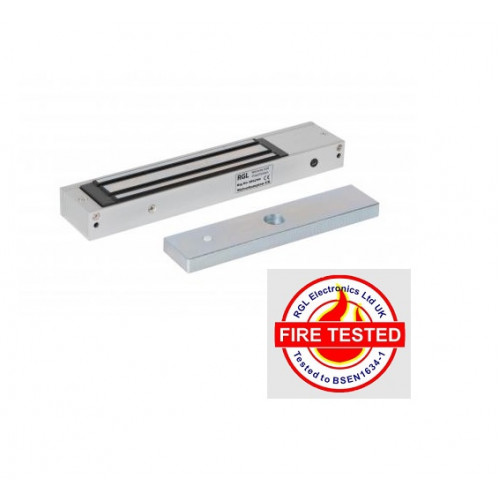

ML600-MDS, Monitored Slimline Mini Magnet product offering 600 lbs (280 kg) holding force - Magnet size 250(L) x 46 (W ) x 24 (D) all MM - Includes a monitoring contact rated at 2 Amp at 24vdc and also Door Monitoring sensor.

Technical specifications

• Aluminium housing.
• Dual Voltage 12/24 VDC @480/240mA.
• 280kgs (600lb) holding force.
• Built in surge protection.
• Surface Mount
• Fail safe operation (Power to lock)
• +/- 15% voltage tolerance
• -10° to +50° operating temperature
• Push off release pin on armature
• Monitored (Lock monitoring)
• Voltage free relay contacts
• Door status monitoring

Features:

• Fire Rated (30, 60, 90 & 120 minute timber door sets)
• Slim line mini magnet.
• Clean and compact design in aluminium.
• Status LED indication
• No residual magnetism

Suitable brackets:

• BK600ZL (ZL Bracket)
• BK600L (L Bracket)
• AH600 (Armature Housing)
• BK600U (U Bracket Glass Door)
• GD600ZL (ZL Glass Door Bracket)
• AB600ZL-DC (Architectural ZL Bracket)
• BK600-F-L/AB (Architectural FL Bracket)
• ADJ600-L (Fully adjustable L Bracket)
