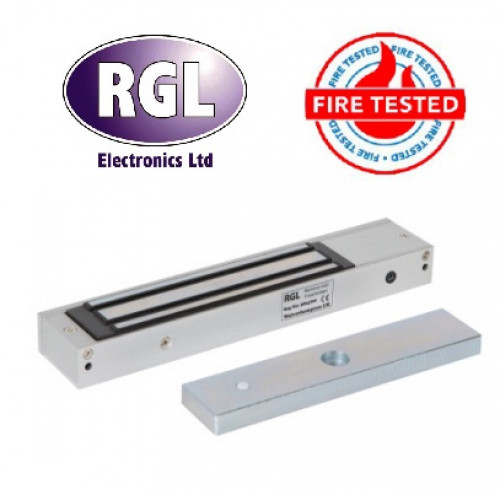

RGL ML600-M, Monitored Slimline Mini Magnet 600 lbs (280 kg) Holding Force

RGL ML600-M, Monitored Slimline Mini Magnet 600 lbs (280 kg) Holding Force

A Complete range of Magnetic Locks, suitable for Wooden Door types, designed to meet all types of applications and provide a high level of security.

Monitored Slimline Mini Magnet product offering 600 lbs (280 kg) holding force - Magnet size 250(L) x 46 (W) x 24 (D) all MM - Includes a monitoring contact rated at 2 Amp at 24vdc

The ML600 range of magnets and brackets have been fire tested to BSEN1634-1-2014

• Slim line mini magnet.
• Clean and compact design in aluminium.
• Single LED indication on ML600
• Multi LED indication on ML600-M
• No residual magnetism

Suitable brackets: BK600ZL (ZL Bracket), BK600L (L Bracket), AH600 (Armature Housing)

Technical specifications:

• Aluminium housing.
• 12/24 VDC @480/240mA.
• 280kgs (600lb) holding force.
• Built in surge protection.
• ML600-M = Monitored

For more details, please refer with our attached datasheet.
