P600EVO, 700mm magnetic architectural handle with LED indication, 600kg

0 reviews

Write a review

Brand:CDVI
Product Code:P600EVO
Availability:Please Call or Email Us to Check Availability

Please contact sales on 01628 669124 or email sales@hunters-wholesalers.co.uk for a quote on this product

Description
Reviews (0)

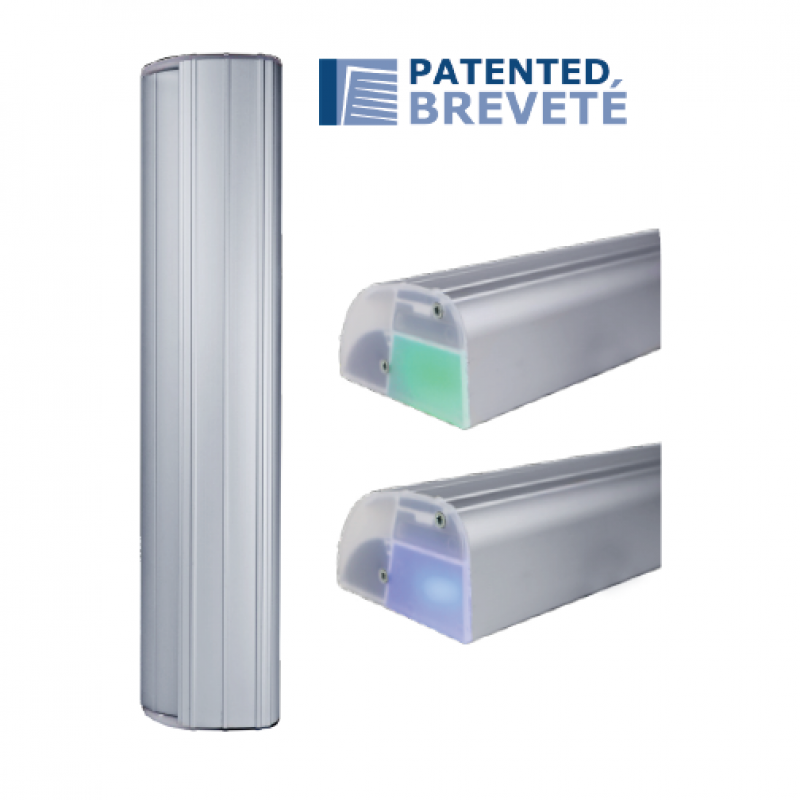

P600EVO, Architectural Handle, 2x300kg Monitored Magnets, 400mm, LED Indication

Magnetic handles are becoming increasingly popular with sites that require strong holding forces and more aesthetic solutions. The entire range from CDVI is ideal for locations where a stronger lock is essential; such as schools, halls of residence and other public buildings.

P600EVO is a 700mm handle incorporating 2x 300kg monitored magnet and can be used externally. The handles are monitored and indicate the status of the door (open or closed) with LEDs.

Surface mount architectural handle
Retrofit or new build
Vertical or horizontal installation
Custom RAL colours (optional)
Visual feedback with blue and green LEDs
2x 300kg magnetic lock

Technical information:

Holding force: 600kg (2x 300kg magnets)
Mounting: vertical or horizontal
Fitting: retrofit or new build
Direct push button input
Flame retardant spring terminals
IP42 & IK10
Free voltage: 10Vdc to 60Vdc
Operating voltage: 12/24/48Vdc
Current consumption: @12Vdc=480mA, @24Vdc=240mA, @48Vdc=120mA
700mm length

Optional:

P300EVO

Architectural handle, 1x300kg monitored magnet, 400mm, LED indication

For more details on this product range, including part numbers, please refer to the datasheet or contact us on sales@hunters-wholesalers.co.uk for more specific product information and pricing installation and training.
