ICS, U10003F/S, Micro Magnet Standard and Face Fixing
- Brand:ICS
- Product Code:U10003F/S
- Availability:Please Call or Email Us to Check Availability
ICS, U10003F/S, Micro Magnet Standard and Face Fixing

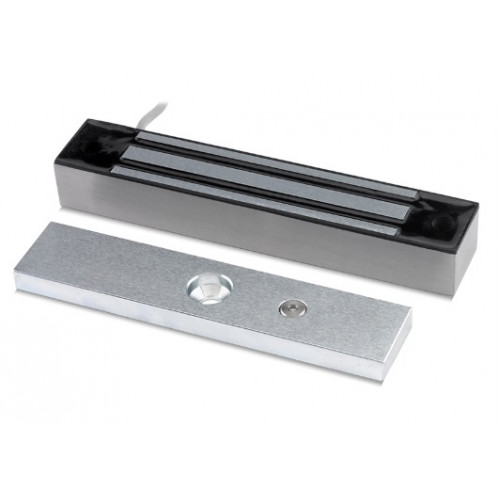

The U10003F/S is a Micro Magnet Standard and Face Fixing.
Key Features:
- Operating voltage 12~24Vdc (Selectable)
- Stainless Steel housing
- Holding force up to 300lbs (136Kg)
- Weather resistant: IP67
- Sealed electronics
- Monitored.
Specifications:
- Voltage tolerance: ±10%.
- Current draw: 300mA at 12Vdc, 150mA at 24Vdc (at temperature 20°C).
- Operating temperature: -10~55°C (14 to 131°F).
- Lock’s surface temperature: Current temperature ±20% (when power is on).
- Humidity: 0~95% non-condensing.
- Dimensions : 165 × 35 × 28 mm.
Contact us on sales@hunters-wholesalers.co.uk for more specific product information and pricing installation and training.
