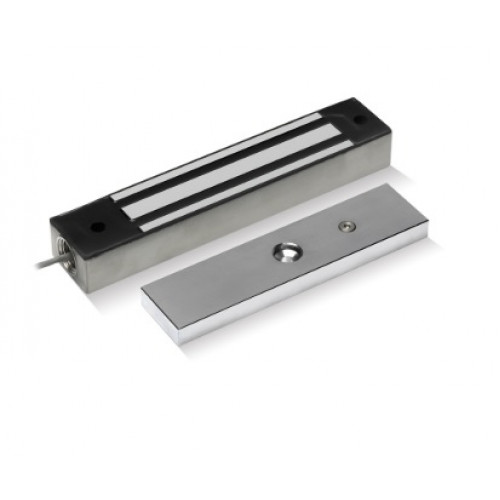

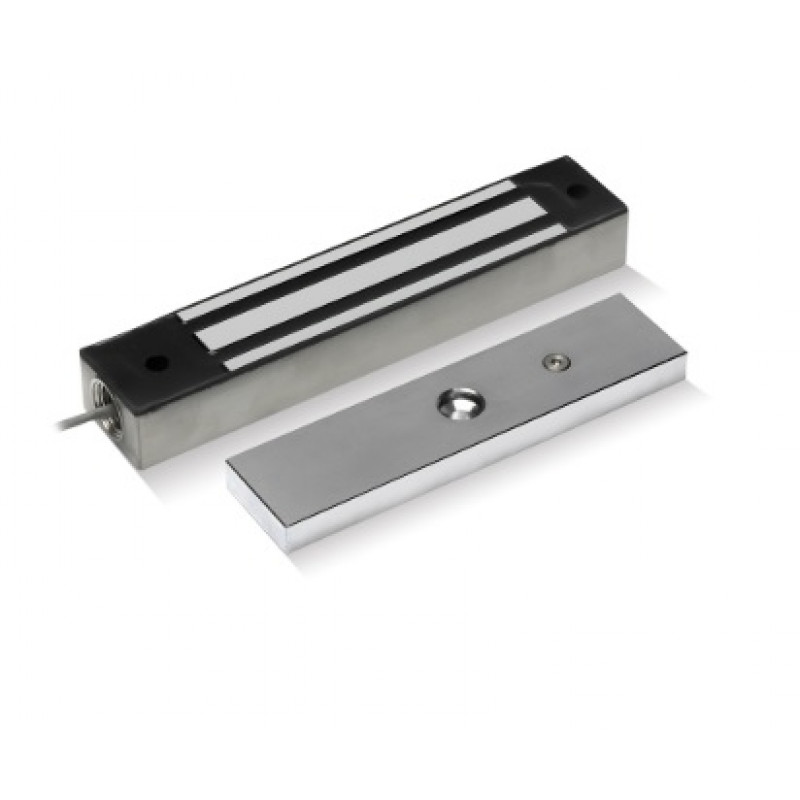

ICS, GL850R, Midi Gatelock Monitored
- Brand:ICS
- Product Code:GL850R
- Availability:Please Call or Email Us to Check Availability
ICS, GL850R, Midi Gatelock Monitored
The GL850R is a Midi Gatelock Monitored.
Key Features:
- Operating voltage 12Vdc
- Stainless Steel
- Holding force up to 800lbs (363kg)
- Face fix
- Weather resistant: IP65
- Vandal resistant.
Specifications:
- Voltage tolerance: ±15%.
- Current draw: 340mA at 12Vdc (at temperature 20°C).
- Operating temperature: -10~55°C (14 to 131°F).
- Lock’s surface temperature: Current temperature ±20% (when power is on).
- Magnetic bond sensor monitor output remotely monitors the door lock or unlock status. (N.C. Output-Door opened; N.O. Output-door closed) (SPDT rated 0.25A at 12Vdc).
- Humidity: 0~95% non-condensing.
- Special Zinc finishes for magnet and armature plate.
- Dimensions : 232 × 45 × 14 mm.
Contact us on sales@hunters-wholesalers.co.uk for more specific product information and pricing installation and training.
