ICS, FR-U10020, Standard Magnet Monitored
- Brand:ICS
- Product Code:FR-U10020
- Availability:Please Call or Email Us to Check Availability

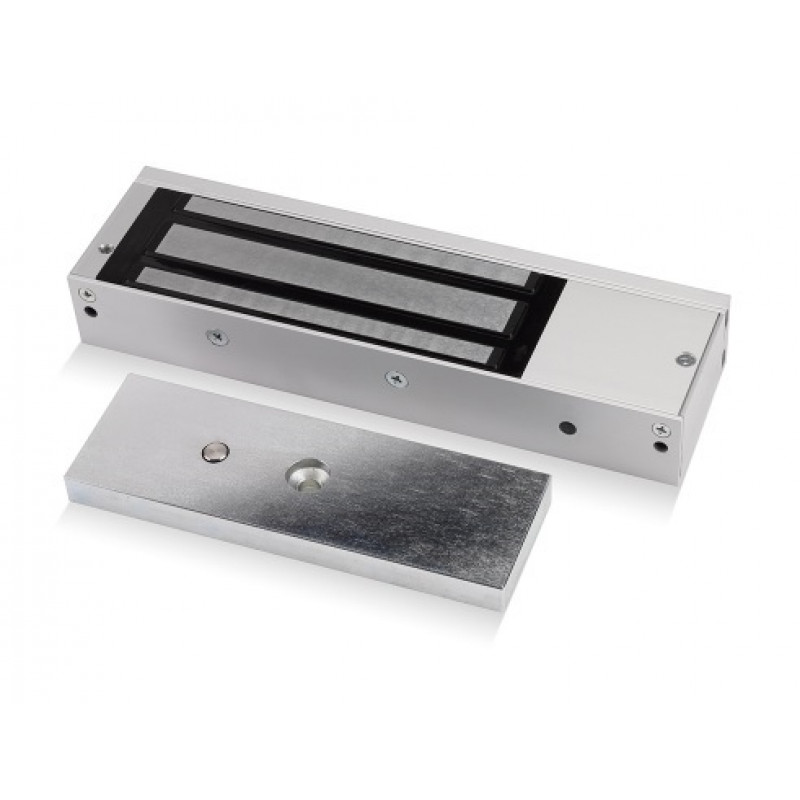

ICS, FR-U10020, Standard Magnet Monitored
The FR-U10020 is a Standard Magnet Monitored.
Key Features:
- FD30 + FD60 Rated
- Operating voltage 12~24Vdc (Selectable)
- Aluminium housing
- Monitored
- Safety bolts fitted
- Fire tested: BS EN1634:1
- Holding force up to 1200lbs (544Kg)
- Electro-less nickel plated armature
- 1 Hour UK fire certificate
- Status LED: Red and Green
Specifications:
- Voltage tolerance: ±10%.
- Current draw: 420mA at 12Vdc, 210mA at 24Vdc (at temperature 20°C).
- Operating temperature: -10~55°C (14 to 131°F).
- Lock’s surface temperature: Current temperature ±20% (when power is on).
- Magnetic bond sensor monitor output remotely monitors the door lock or unlock status. (N.C. Output-Door opened; N.O. Output-door closed) (SPDT rated 0.25A at 12Vdc).
- Aluminium housing, nickel plated armature.
- Humidity: 0~95% non-condensing.
- Dimensions : 268 × 67 × 40 mm.
Contact us on sales@hunters-wholesalers.co.uk for more specific product information and pricing installation and training.
