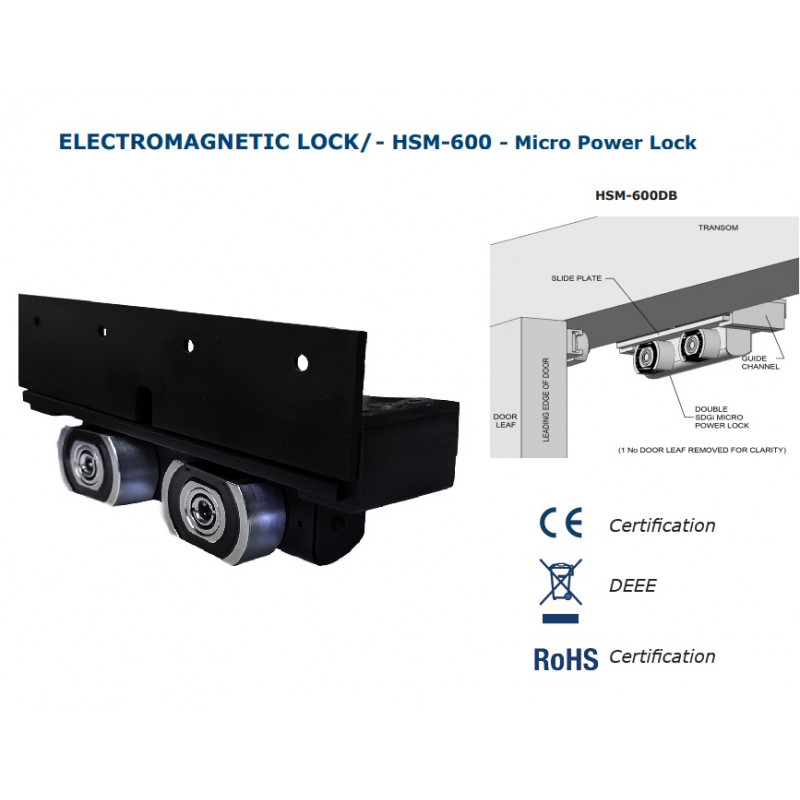

CDV (HSM-600DB) Double high security maglock with adjustable bracket 2 x 680kg
- Brand:CDVI
- Product Code:HSM-600DB
- Availability:Please Call or Email Us to Check Availability
CDV (HSM-600DB) Double high security maglock with adjustable bracket 2 x 680kg
The Micro Power Lock is ideal for automatic doors, especially where space between operators is narrow for conventional maglocks, or where the armature intrudes on the safety sensor position.
The maglock ensures improved performance and reliability thanks to its built-in patented technology. Plus, the traditional armature plate is supplemented by a strong alloy pin, creating a mechanical and a magnetic holding force. The bracket and the armature are adjustable, allowing the lock to be positioned according to your requirements.
- High quality patented lock
- Rounded edges
- Available in black or silver
- Supplied assembled & ready to install
- Adjustable bracket and armature
- PCB located inside transom
- Outward/inward opening door options
TECHNICAL INFORMATION:
- Black or silver finish
- 680kg holding force per lock
- Armature dimensions (WxH): 70 x 26mm
- Input voltage: 12/24Vdc
- Consumption: @12V=280mA, @24V=120mA
For more details on this product range, including part numbers, please refer to the datasheet or contact us on sales@hunters-wholesalers.co.uk for more specific product information and pricing installation and training.
