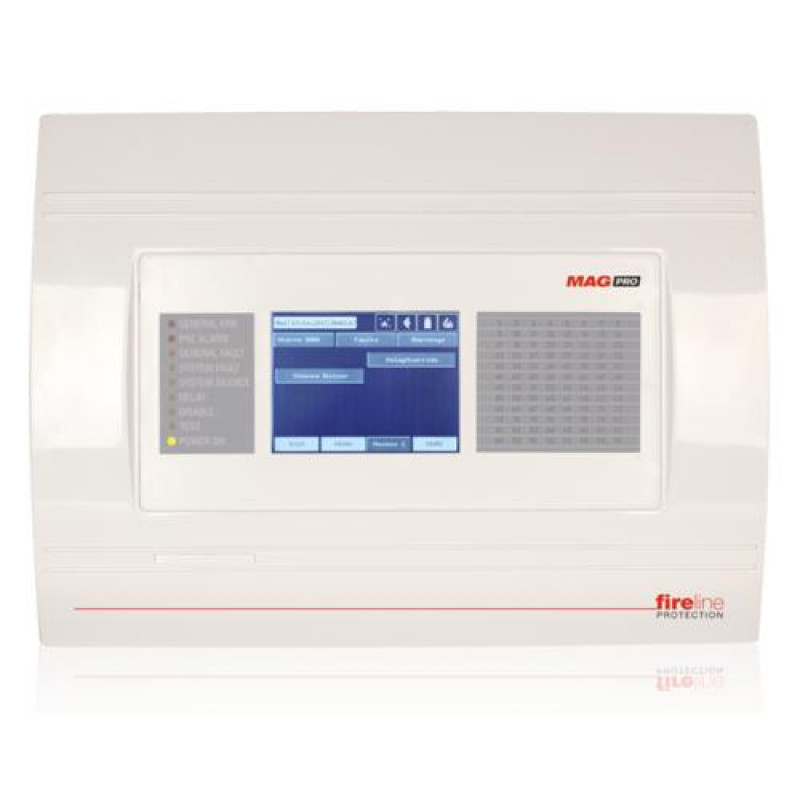

MAGfire (MAGPRO96) Addressable 96 Zone Fire Panel

MAGfire (MAGPRO96) Addressable 96 Zone Fire Panel

96 zone addressable fire alarm panel supplied with 1 loop. Expandable to 4 loops using additional MAGPRO96-L250’s. A maximum of 250 devices can be connected to each loop.

Key Features:

• 96 Zones
• Maximum 250 devices per loop
• Memory Log: 10,000 events
• Networkable up to 32 Panels
• 320 x 240 pixel touch screen display
• Free programing software
• Micro USB port for PC connection
• Loop & battery calculator software included
• Certified to EN54–2/4

Technical Specifications:

Inputs:

• Loops: 1 expandable to 4
• Devices Per Loop: 250
• Protocol: MAGPRO

Power:

Mains Fail Consumption: 285mA DC - 1 LOOP 360mA DC - 2 LOOP 435mA DC - 3 LOOP 510mA DC - 4 LOOP
Mains Supply: 230V AC + 10%/ -15%
Max Loop Current: 500mA DC
Backup: 1x12V 18Ah

Outputs:

• 1 Sounder: 24v DC @ 300mA
• 4 Programmable Relays: 24v DC @ 15A
• 2 Monitored Outputs: 24v DC @ 300mA
• 1 Auxillary Output: 24v DC @ 300mA
• 1 Fault Output: 24v DC @ 300mA

Environment:

• Working Temperature: -5°C to +40°C
• Storage: -10°C to 60°C
• Humidity: 0 - 95%
• Dimensions: 456 x 350 x 125mm

For more details, please refer with our attached manual.
