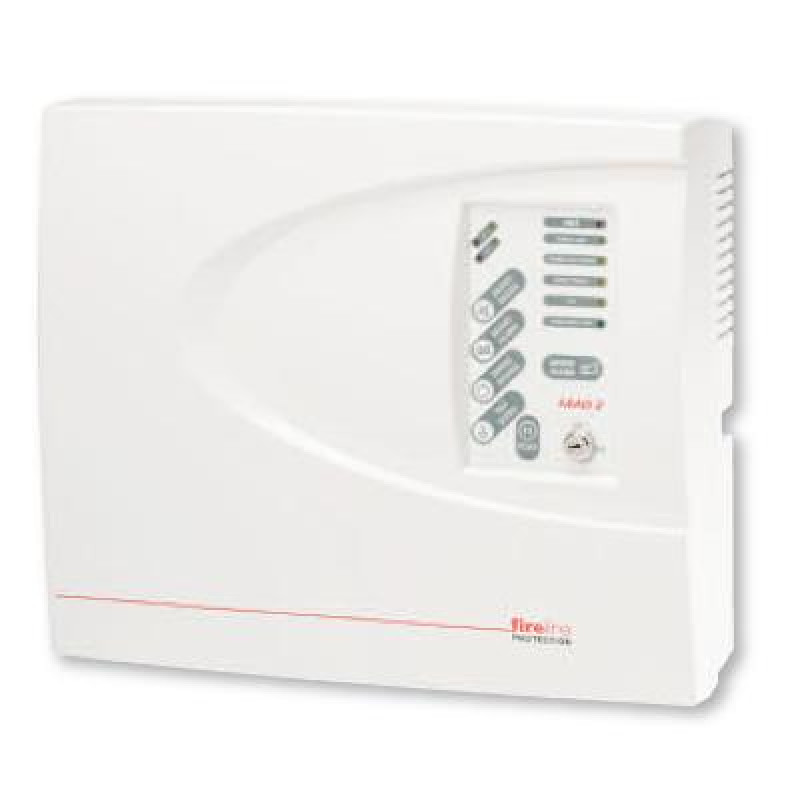

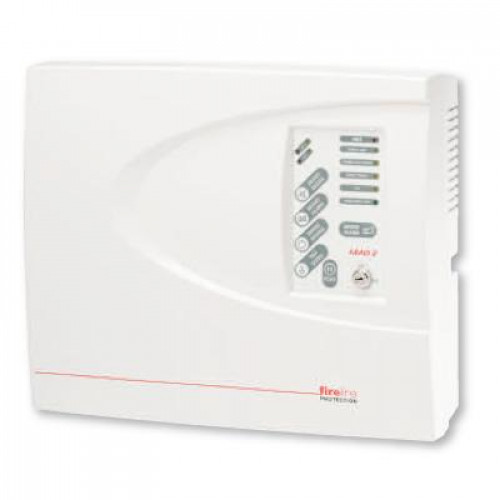

MAGfire (MAG4P) 4 Zone ABS Conventional Fire Panel

MAGfire (MAG4P) 4 Zone ABS Conventional Fire Panel

Key Features:

• 4 programmable zones
• Active end of line monitoring and head removal
• 30 fire detectors per zone
• Unlimited number of call points per zone
• Integral evacuate alarm button
• ‘Class change’ facility
• Enable/disable security key
• One man walk test facility
• Volt free fire change over relay
• Volt free fault change over relay
• Individual sounder circuit fault ID
• Individual zone/sounder isolate
• BS5839 and EN54 P2/4 compliant
• CE certified
• Requires only 1x12v battery
• ABS casing

Key Features:

Inputs

• Max detectors per zone : 30
• Thresholds for zone conditions : 0 - 2 mA (Fault condition), 2 - 6 mA (Normal condition), 6 - 110 mA (Fire condition), 110 mA - Short (Fault condition)

Power

• Mains fail consumption : 50mA
• Mains supply : 230 VAC ± 10%
• Standby supply : 1 x 7ah 12V S.L.A. Battery
• Power availability : 0.7 amps

Outputs

• Sounder 1 : 24V (max 300mA fused)
• Sounder 2 : 24V (max 300mA fused)
• Fault/fire relay : Volt free 500mA @ 24V (max load)
• Auxiliary output : 24VDC (300mA fused)

Environment

• Working Temperature : 0 to 40 OC
• Storage Temperature : -20 to 60 OC
• Humidity : 0 - 95%
• Dimensions (mm) : 340W 290H 100D

For more details, please refer with our attached datasheet.
