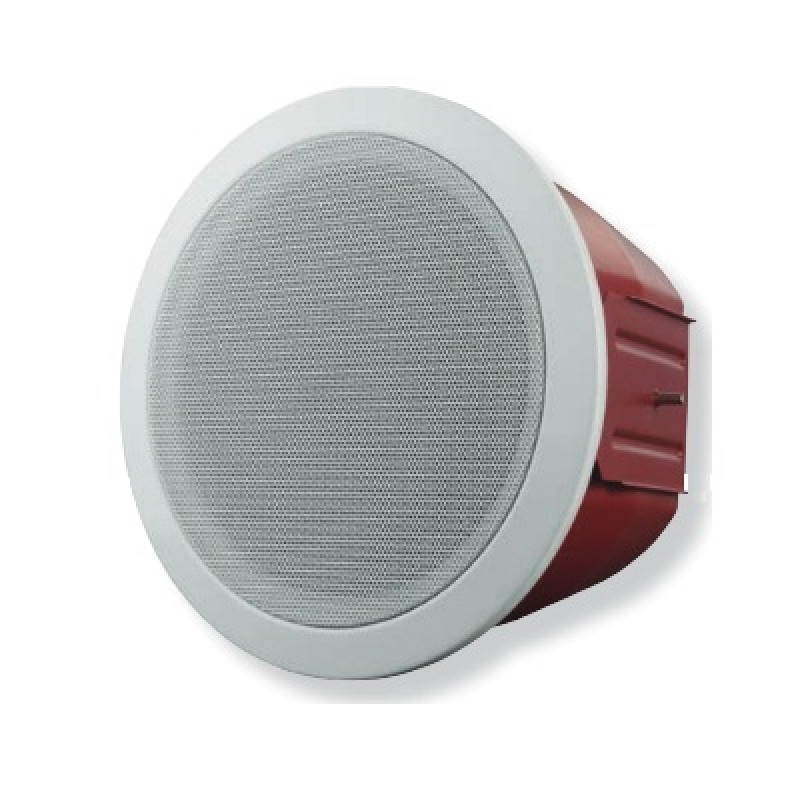

Honeywell (LSC-506) 5" Ceiling Loudspeaker

Honeywell (LSC-506) 5" Ceiling Loudspeaker

Honeywell’s voice alarm ceiling loudspeaker is designed for flush in suspended ceiling and ideal for even sound distribution.

Technical Specifications:

Electrical

• Max power: 9 W
• Rated power: 6 W
• Power taps @ 100V: 6 W / 3 W / 1.5 W / 0.75 W
• Power taps @ 70V: 3 W / 1.5 W / 0.75 W / 0.375 W
• SPL at 1W/1M (100 Hz - 10 KHz ): 91dB
• SPL at 6W/1M (100 Hz- 10 KHz ): 100dB
• Frequency range (-10dB): 180 Hz - 20 KHz
• Dispersion angle (1 KHz /- 6dB): 175°
• Rated input voltage: 100 V / 70 V
• Rated impedance: 1.7k Ω / 3.3k Ω / 6.7k Ω / 13k Ω
• Connection: Ceramic Terminal

Mechanical

• Dimensions: Φ 181 mm × 129 mm
• Hole cut-out size: Φ 155 mm
• Diameter of speaker: 5"
• Front grill color: White (RAL9003)
• Dome color: Red (RAL3000)
• Thermal Fuse: 150°C

For more details, please refer with our attached datasheet.
