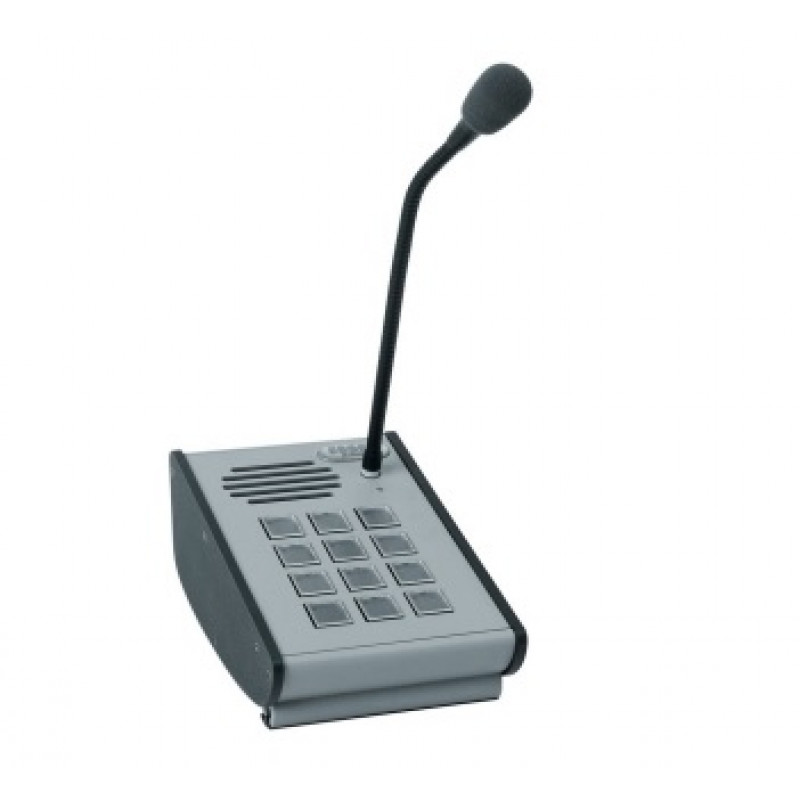

Honeywell (583501.RE) 12 Button Desk Mount Goose Neck Mic
- Brand:Honeywell
- Product Code:583501.RE
- Availability:Please Call or Email Us to Check Availability
Honeywell (583501.RE) 12 Button Desk Mount Goose Neck Mic
In many installation codes it is necessary to have redundancy in critical signal routes like speaker cables (Loop or AB cabling), between fire panel and the PAVA system. In some installation codes this includes also the connection to the fire men paging microphone. If the connection is lost, there is no way for any live announcement to people which are potentially or actually in high danger. Our paging station supports redundant cable connections to two separate Comprio with Ethernet (not standalone version of Comprio) or DOM. This means it is possible to connect two (CAT5) cables to one paging station providing redundant operation.
Key Features:
- High failure safety due to redundant transmission route.
- Cost-effective CAT5 cabling.
- Elektret gooseneck microphone with cardioid pattern.
- Permanent monitoring of the microphone and cable.
- Loudspeaker for monitoring and for intercom operation between other paging stations (DCS series).
- 24-bit AD/DA converter.
- Independent additional audio input/output e.g. for audioplayer.
- 12 freely configurable keys with independent programmable LED.
- A separate LED, programmable in yellow or red.
- Can be used redundantly as well as non-redundantly.
Specifications:
- Audio output:
- Nominal level : 0 dBu.
- Transmission range : 20 Hz - 22000 Hz.
- Audioinput:
- Nominal level : 0 dBu.
- Common technical data:
- Microphone : Elektret, cardoid characteristic.
- Swan-neck : 250 mm ,100 Hz - 15000 Hz.
- Sample rate : 48 kHz.
- AD/DA converter : 24 Bit.
- Current consumption : 70 mA.
- Ambient temperature : -5 °C - 55 °C.
- Air humidity : < 15 %.
- Color : black, similar to RAL 9005 (side frames) . gray, similar to RAL 7037 (middle body).
- Dimensions : W: 123 mm H: 71 mm D: 180 mm.
- Declaration of Performance : DoP-20997130701.
Contact us on sales@hunters-wholesalers.co.uk for more specific product information and pricing installation and training.
