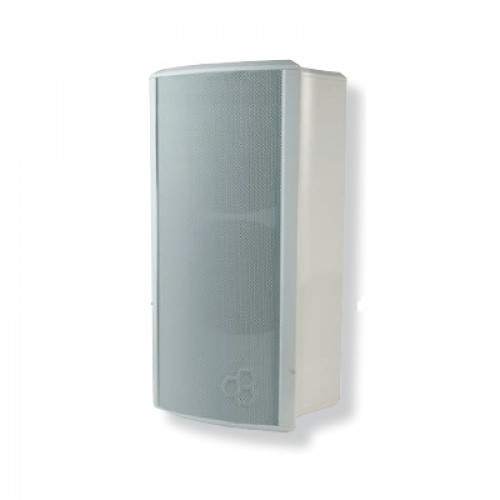

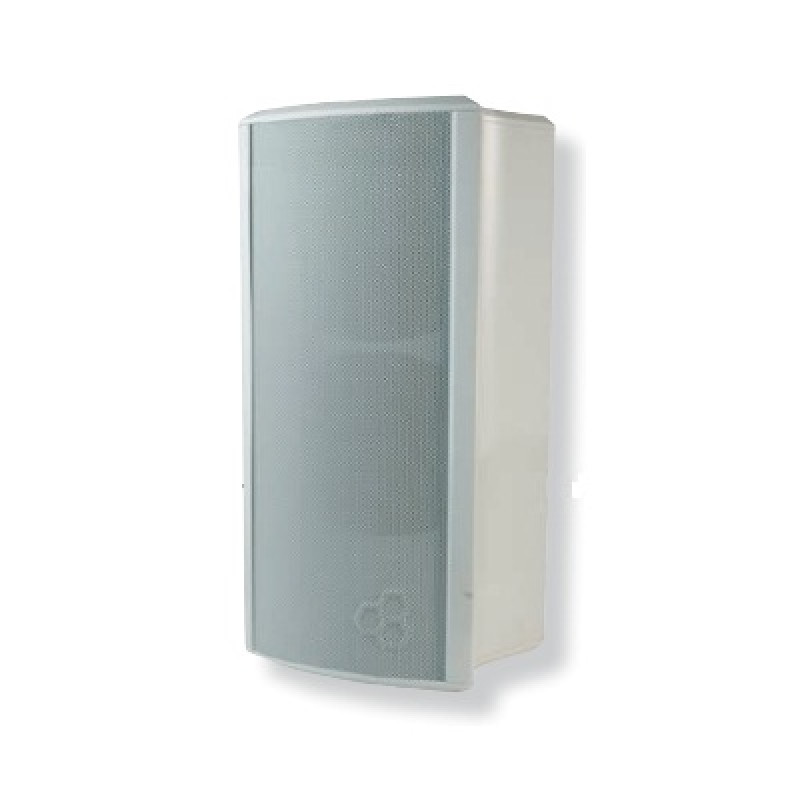

Honeywell (582476) 20W Column Loudspeaker

Honeywell (582476) 20W Column Loudspeaker

Honeywell’s Voice alarm column loudspeaker complies with BS 5859 part 8 and EN54 part 24. Column loudspeakers consist of a number of drive units arranged in a vertical pattern and are usually confined to sound reinforcement applications rather than distributed P.A. systems.

Technical Specifications:

Electrical

• Max power: 30 W
• Rated power: 20W
• Power tapping: 20 W / 10 W / 5 W / 2.5 W
• SPL at 1W/1M ( 100Hz - 10KHz ): 92dB
• SPL at 20W/1M (100 Hz- 10 KHz ): 103dB
• Frequency range (-10dB): 300 Hz ~ 15 KHz
• Rated input voltage: 100 V / 70 V
• Rated impedance: 500 Ω / 1K Ω / 2K Ω / 4K Ω
• Connection: Fire-resistant Cable

Mechanical

• Dimensions (WxHx D): 165 mm x 150 mm x 344 mm
• Colour: White (RAL9003)
• Speaker size: 4" x 2
• Material: Aluminum
• IP Rating: 66

For more details, please refer with our attached datasheet.
