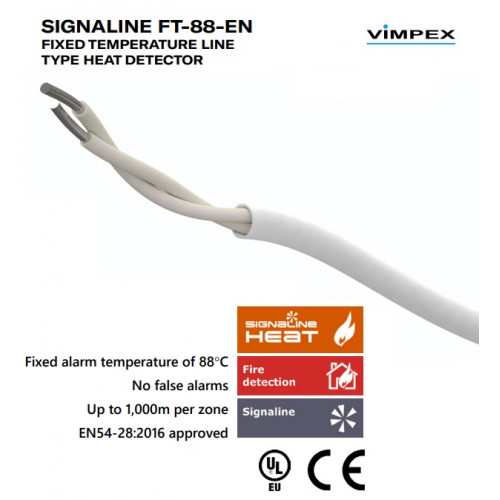

FIXED TEMPERATURE LINE TYPE HEAT DETECTOR

Signaline FT-EN is a brand new linear heat detection system approved to EN54 part 28. Fixed Temperature Linear Heat Detectors detect a build up of heat anywhere along their length. When any point along the length of the cable reaches a predetermined temperature an alarm is initiated.

Signaline FT-EN is approved by UL to EN54 part 28 as non-resettable line type heat detector. It is Low Smoke Zero Halogen (LSZH) and is available in either 78°C or 88°C alarm temperatures.

The cable outer coating is made from a UV and chemical resistant compound making the cable suitable for even the harshest of environments.

Signaline FT-EN is used with the Signaline LocatorPlus-EN and FT-EOL-EN to make a complete EN54 part 28 approved system

NOTE: Available in three different alarm temperatures 68 C, 88 C or 105 C which are UL Listed and FM Approved and two cover options for the 68 105 cables. A high temperature cable of 185 C is also available to provide a full range of fixed temperature heat sensing cables.

Signaline FT heat sensing cables can be used as a standalone system or connected to any conventional control panel and can cover up 3 km in a single zone.

For more details on this product range, including part numbers, please refer to the datasheet or contact us on sales@hunters-wholesalers.co.uk for more specific product information and pricing installation and training.
