DSH10.4LED, 10.4” (4:3) LED Monitor, HDMI, 1 x BNC in, 1 x BNC out, VGA Monitor Plastic Case
- Brand:Vigilant Vision
- Product Code:DSH10.4LED
- Availability:Please Call or Email Us to Check Availability

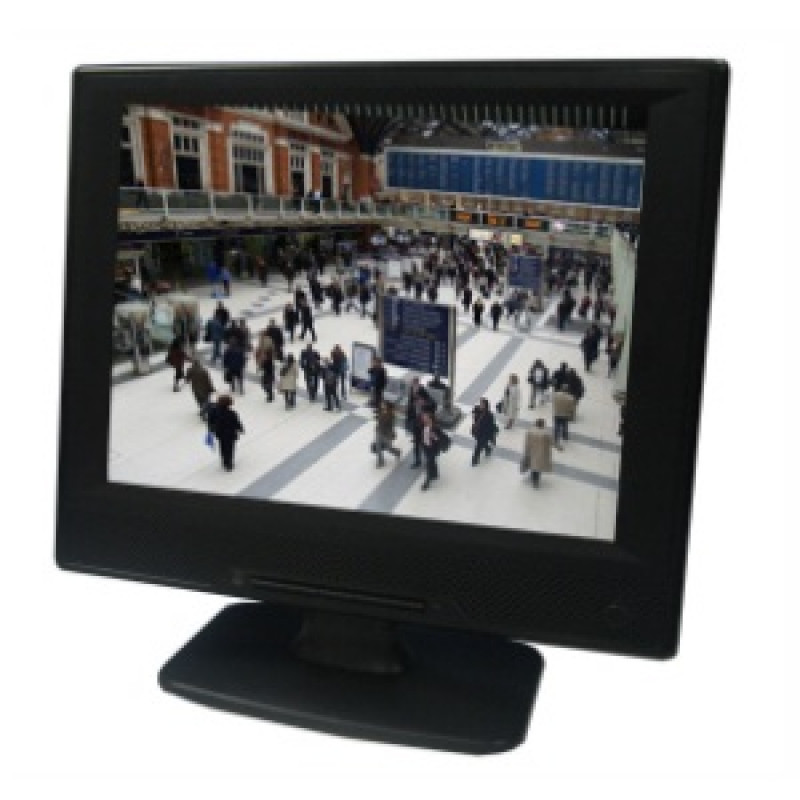

Vigilant Vision (DSH10.4LED) 10.4-Inch LED Monitor
Specifications:
| Panel Type | 10.4” LED Monitor |
| Case Type | Plastic |
| Maximum Resolution | 800 (H) x 600 (V) |
| Active Display Area | 211.2 (W) x 158.4 (H) mm |
| Pixel Pitch | 0.264 (H) x 0.264 (V) mm |
| Bezel Thickness | Top (19mm) Bottom (44mm) Sides (29mm) |
| Contrast Ratio | 500 : 1 Ratio |
| Brightness | 300 cd/ m² |
| Response Time | 8ms |
| Viewing Angle | H: 150 V: 110 |
| Display Colours | 16.7 M |
| Video Synchronization | TTL Positive or Negative |
| PC Compatible Frequency | 30-80KHz(H) / 50-75Hz(V) Max. 800 x 600 |
| Adjustable Colour Temperature | 9300K / 6500K / 5800K / User |
| Video Compatiblity | Multi-Standard for NTSC / PAL |
| Aspect Ratio | 4 : 3 Ratio |
| VGA Auto Frequency correction | Yes |
| Speakers | Multimedia Speakers |
| Number of Speakers | Right x 1 Left x 1. 2.5W |
| Sound Demodulation | Stereo. Audio |
| Mute | Yes |
| Work Humidity | 20 % – 70 % |
| Work Temperature | -10 to 50 °C |
| Volume +/- Power On/Off | Yes |
For more details, please refer with our attached datasheet.
Contact us on sales@hunters-wholesalers.co.uk for more specific product information and pricing installation and training.
