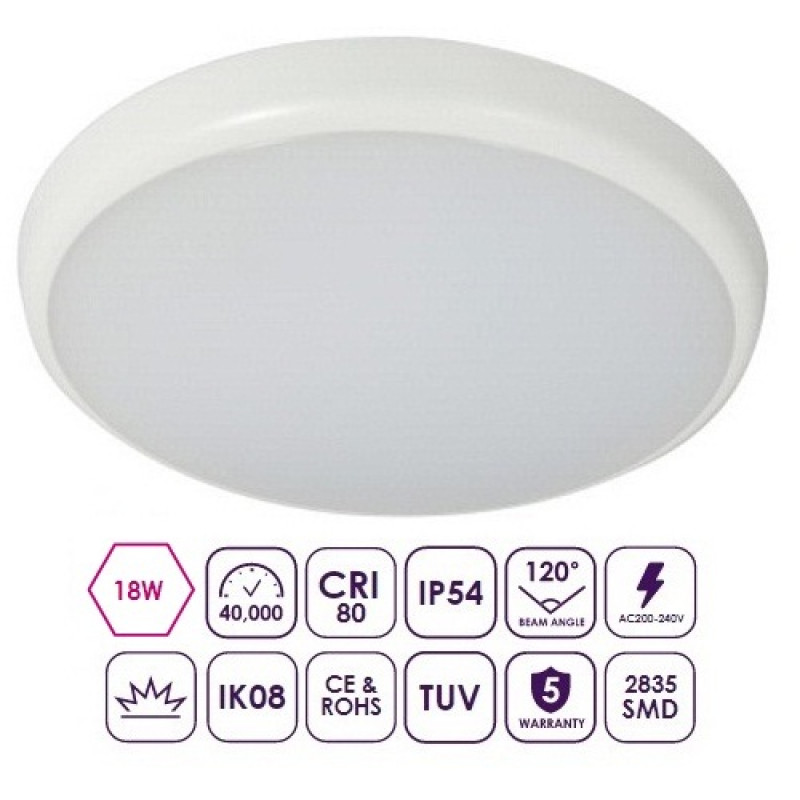

2D-4K-18SEN-AJ, Convex Shallow 18W Adjustable Microwave Sensor LED Bulkhead
- Brand:Save Light
- Product Code:2D-4K-18SEN-AJ
- Availability:Please Call or Email Us to Check Availability
2D-4K-18SEN-AJ, Convex Shallow 18W Adjustable Microwave Sensor LED Bulkhead
18W 2D Bulkhead Adjustable Sensor, IP54 12" Dia 300x48mm.
Key Features:
- 18 Watts – Upto 1650 lumens
- IP54 rated fitting
- Besa box and surface mountable
- IK08 Impact resistant
- Quality TPA rated diffuser
- No maintenance
- No LED hotspots
- DIP Switches at the back of the bulkhead, enables you to adjust the detection area
- Ideal for corridors, entrance foyer, bathrooms, hospitals homes, offices and educational institutions
- 5 Years Warranty
Technical Specifications:
- Power: 18W
- Lumens: 1620lm - 4000K
- Lumens per watt: 90lm/W – 4000K
- Colour Temp: 4000K
- Beam Angle: 120º
- CRI: Ra>80
- Operating Voltage: AC200-240V 50/60Hz
- Life Span: 40,000hrs
- Start Time: <0.5s
- Switching Cycles: ON/OFF >40,000x
- Hold Time for Microwave Sensor & Emergency: 30s
- LED CHIP: Epistar 2835 SMD
- IP Rating: IP54
- House Material: AL6063 Aluminium
- Base: Wire and plug
- Approvals: CE, RoHS, TUV
- Warranty: 5 Years
For more details, please refer with our attached datasheet.
