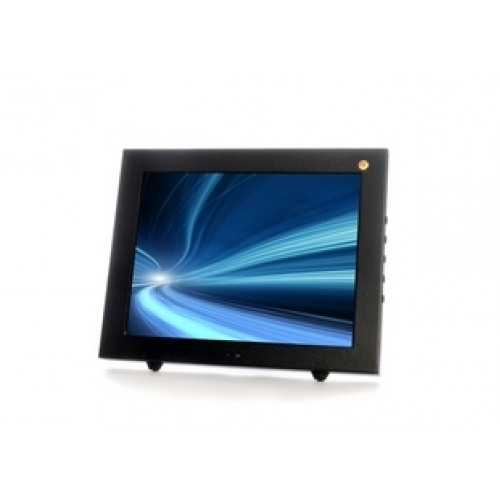

Vigilant Vision (DSM12.1WGF) 12.1-Inch Active Matrix with Glass Front/ Metal Case
- Brand:Vigilant Vision
- Product Code:DSM12.1WGF
- Availability:Please Call or Email to Checkout
Vigilant Vision (DSM12.1WGF) 12.1-Inch Active Matrix with Glass Front/ Metal Case
Specifications:
| Panel Type | 12.1” (4:3) LCD Monitor with Glass Front |
| Case Type | Metal |
| Maximum Resolution | 800 (H) x 600 (V) |
| Active Display Area | 246.0 (H) x 184.5 (V) |
| Pixel Pitch | 0.3075 (H) x 0.3075 (V) mm |
| Bezel Thickness | 28.25 mm |
| Contrast Ratio | 500 : 1 Ratio |
| Brightness | 350 cd/ m² |
| Response Time | 10 ms |
| Viewing Angle | U/D: 50° / 60°, L/R: 70° / 70° / 110° / 140° |
| Display Colours | 16.2 M |
| Video Synchronizatio | Yes |
| PC Compatible Frequency | 30-60KHz(H) / 56-75Hz(V) |
| Adjustable Colour Temperature | Yes |
| Video Compatiblity | Multi-Standard for NTSC / PAL |
| Aspect Ratio | 4 : 3 Ratio |
| VGA Auto Frequency correction | Yes |
| Speaker | N/A |
| Number of Speakers | N/A |
| Sound Demodulation | N/A |
| Mute | N/A |
| Work Humidity | 20 % – 70 % |
| Work Temperature | -10 to 50 °C |
| Volume +/- Power On/Off | Power ON/OFF Only |
For more details, please refer with our attached datasheet.
