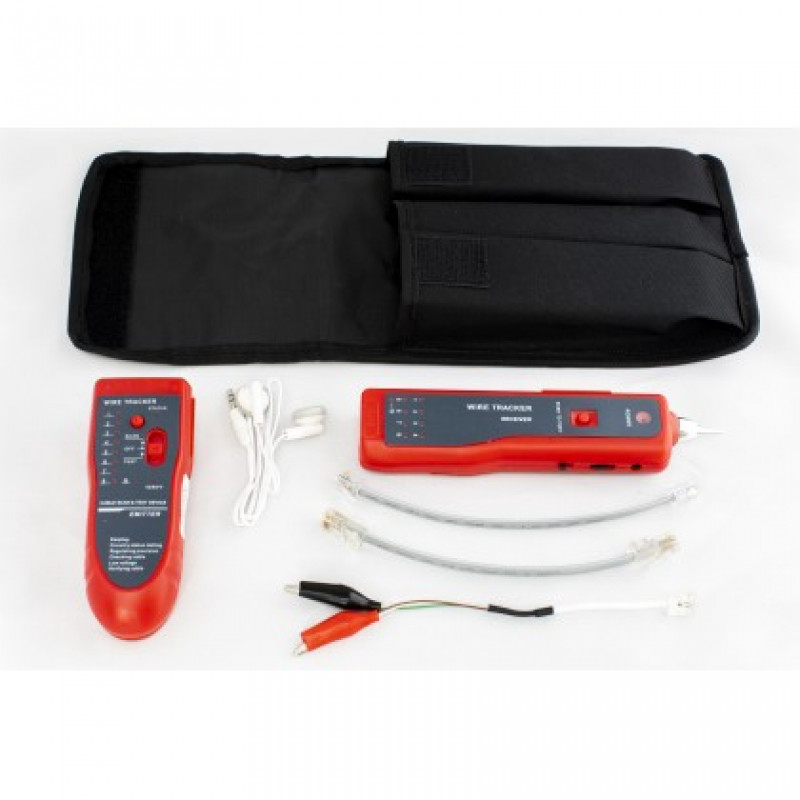

HAY-RJ45TRACK, RJ45 CABLE TRACKER

HAY-RJ45TRACK, RJ45 NETWORK CABLE TRACKER

Network Cable Tester

1. Cable Tester for UTP STP RJ45(manual switch)
2. Automatic scan for miss wiring, cable order errors, open and short circuit
3. TEL/BNC test available(Adapter needed)
4. Remotely test cable up to 1000 ft in length ( remote kit included )
5. Protective power switch for low power consumption
6. Judge continuity of the cables or wires
7. Track the cables or wires, and diagnose the break point
8. Receiver tone signal on the cables or wires (telephone line)
9. Identify the state in the working telephone line (clear ring, busy)
10. Send a single solid tone or a dual alternating tone to the object cables or wires
11. Complete with high quality protective case

Specification:

• Working current: Tester: 10mA Receiver: 30mA
• Signal transfe mode: Digital signal
• Signal output level: 8Vp-p
• Signal transfer distance: 3Km
• Dimension:Transmitter: 126x49x34mm Reveiver:175x42x25mm
• Power: by 2 x DC 9V Battery( not included)
