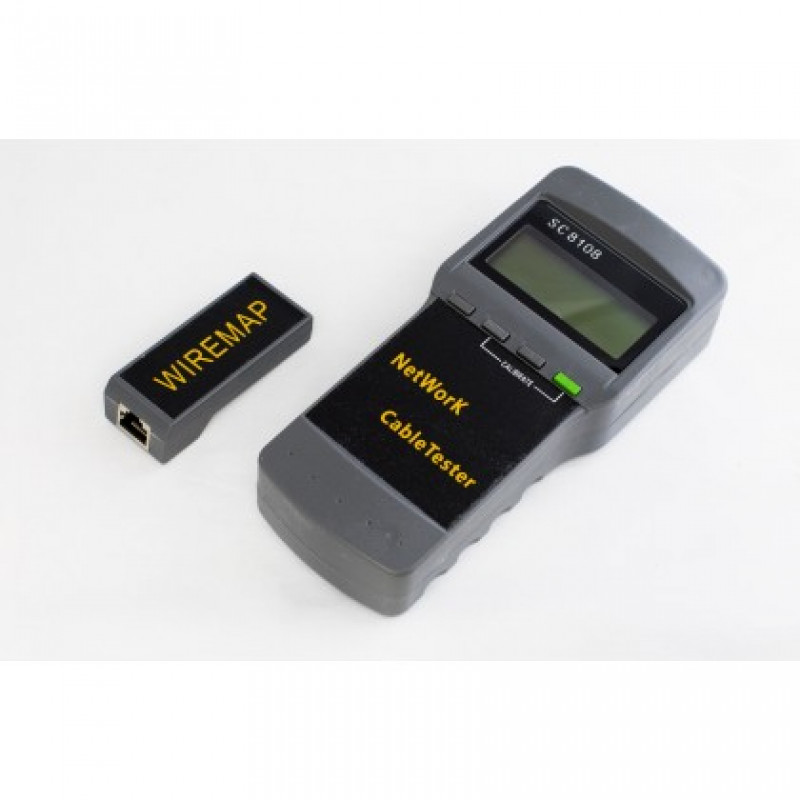

HAY-RJ45MULTI, RJ45 MULTI TESTER

HAY-RJ45MULTI, RJ45 MULTI TESTER

Features

• Indicates pair integrity of the cable, measure the length of cable/pair with or without far-end recognizer
• Locates wiring or connection error • Measure cable length and determines the distance of open circuit and short circuit
• Permits you to check wiring error in 5E/6E twisted cord network, coaxial cable and telephone lines
• Applicable for open circuit, short circuit, jumper wire, reverse connection or cross-talk interference
• Dynamically calibrate cable length and takes cable length measurements. (97% Accuracy)
• LCD screen to display clear test results • Long battery life (wait-case or standby mode for over 50 hours)
• Auto time delay shut off • Comes with 1 far-end passive test jack
• Far end recognizer with prompt voice • Single board computer software watchdog design for reliable operating
• Self-checking function that automatically compensates any change in battery capacity or ambient temperature

Tech Specification:

• LCD: 4 x 16 characters big LCD screen (valid visual field 61.6 x 25.2 mm)
• Type of Tester Cable: STP / UTP twin twisted cable, coaxial cable, telephone line
• Tester Port: Tester RJ45 master port (M), tester LOOPBACK RJ45 port (L), far-end recognizer RJ45 port (R)
• BNC and RJ11 converters (not included in the set), can be used to measure and check the continuity of coaxial cable and telephone line
• Length Measurement of Twin Twisted Cable: Scope: 1 to 350M (3 to 1,200 FT) calibration, Calibration accuracy: 3% (±0.5m or ±1.5 ft) (calibrating cable > 5 M), Shipment accuracy: 5% (±0.5m or ±1.5 ft) (AMP, AT&T Class 5 cable)
• Unit of Measurement: Display in meter (M) or feet (FT)
• Length Calibration: User can set self-calibration factor by a given length cable, 5m Minimum length required
• Wire Sequence and Locating Cable Error
• Check errors such as open circuit, short circuit, reverse connection, cross over or cross-talk interference
• Locating Cable: Included 1 far-end passive test jack
• Working Ambient Temperature: -10°C to 60°C
• Automatic Time-delay Shut Off Time: The tester is idle for 30 minutes
• Uses 2 x AA batteries (not included in the set)
• Item size: 180 x 80 x 40 mm
