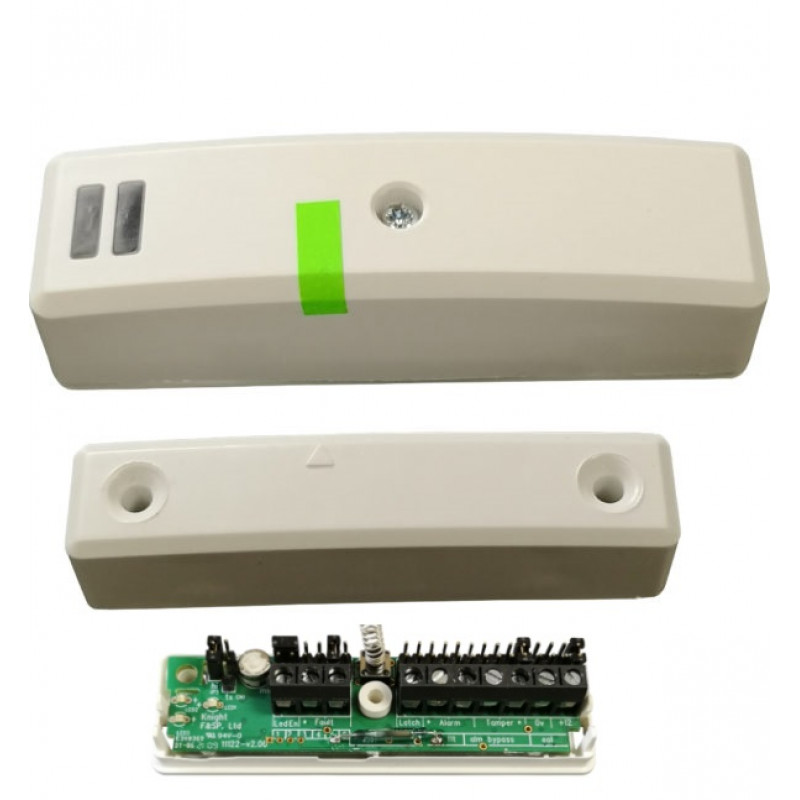

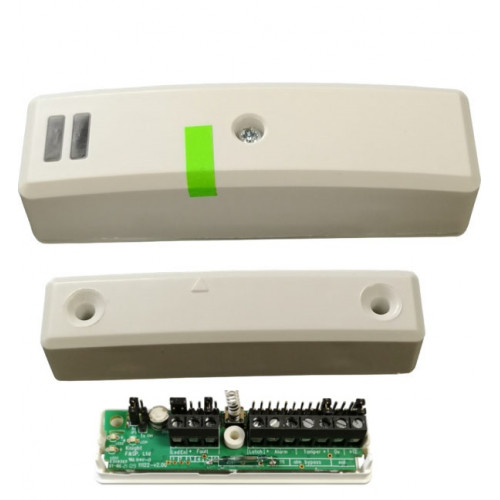

This is the Grade 3 Shock Sensor, complete with a Magnetic Contact and is the perfect replacement for the now obsolete ‘Honeywell Viper’ range of shock sensors.

• Grade 3
• Combined Shock / Tilt Sensor and Magnetic Contact unit
• Complies with the brand new EN50131-2-8:2016 standard and therefore PD6662:2017 to Grade 3
• Sensitivity Auto calibration
• Sensitivity pot
• Selectable EOL and Alarm resistors
• Rear tamper detection (meeting Grade 3)
• LED enable jumper
• Suitable for mounting in the ‘V BOX’
• Pulse count selectable on board
• Pulse count selectable via serial link
• Vibration and surface / tilt detection selectable on board
• Motion sensing available on any movement along the vertical plane
• Vibration and surface / tilt detection selectable via serial link
• Fault output
• Selectable Fault resistors
• Latch terminal
• First to Alarm memory
• Remote LED enable
• Heartbeat LED
• Serial connection option
• EOL Resistor options: 1k,2k2,4k1,4k7,5k6
• Alarm Resistor options: 1k,2k2,4k1,4k7,5k6,6k8
• Fault Resistor options: 2k2,3k,6k8,12k
• Dimensions(mm): 88 x 25 x 22.8
• Also available in Brown or Black – please contact us for further details

NOTE: SEISMO ADVANCE DOES NOT SUPPORT FULLY EOL MONITORED WIRING IN SERIES / SHARED ZONE CONFIGURATION.  THIS CAN BE ACHIEVED VIA THE LATCHING FUNCTION, USING 4 WIRE CONFIGURATION
