Knight Plastics, SEISMO, Shock and Motion Sensor (Grade 3)
- Brand:Knight Plastics
- Product Code:SEISMO
- Availability:Please Call or Email Us to Check Availability

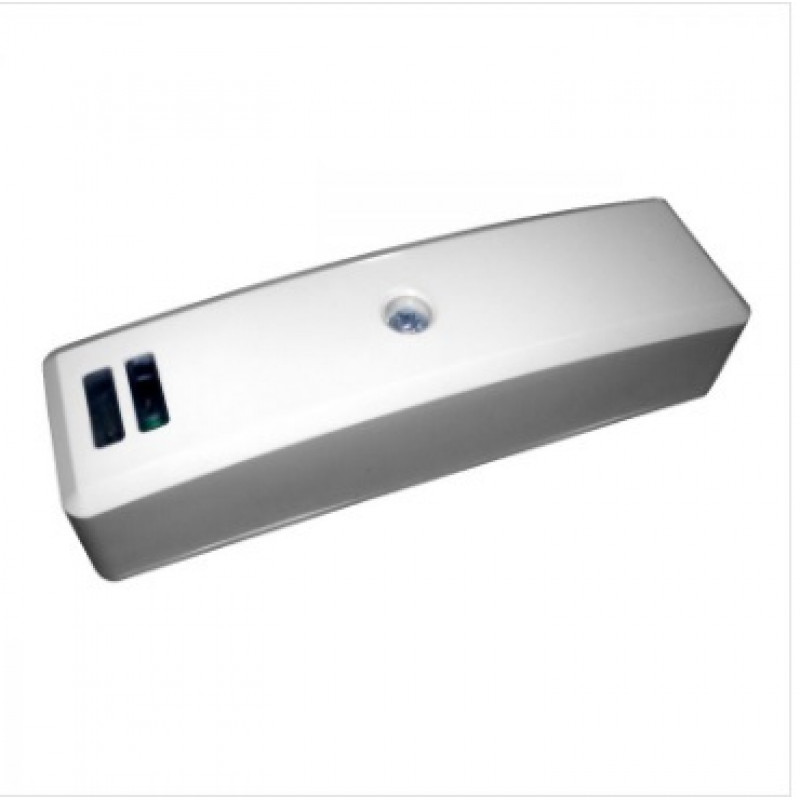

SEISMO, Shock and Motion Sensor (Grade 3)
This is the standard version of SEISMO.
Specification:
- EN50131 Grade 2 as from 01.06.19
- Sensitivity Auto calibration
- Selectable EOL and Alarm resistors
- Rear tamper detection
- Suitable for mounting in the ‘V BOX’
-
LED enable jumper
- Pulse count selectable on board
- Pulse count selectable via serial link
- Vibration and surface / tilt detection selectable on board
- Motion sensing available on any movement along the vertical plane
- Vibration and surface / tilt detection selectable via serial link
- Heartbeat LED
- Serial connection option
- EOL Resistor options: 1k,2k2,4k1,4k7,5k6
- Alarm Resistor options: 1k,2k2,4k1,4k7,5k6,6k8
- Dimensions(mm): 88 x 25 x 22.8
- Also available in Brown or Black – contact us for further details
NOTE: SEISMO DOES NOT SUPPORT WIRING IN SERIES / SHARED ZONE CONFIGURATION
For more details, please refer with our attached datasheet.
Contact us on sales@hunters-wholesalers.co.uk for more specific product information and pricing installation and training.
