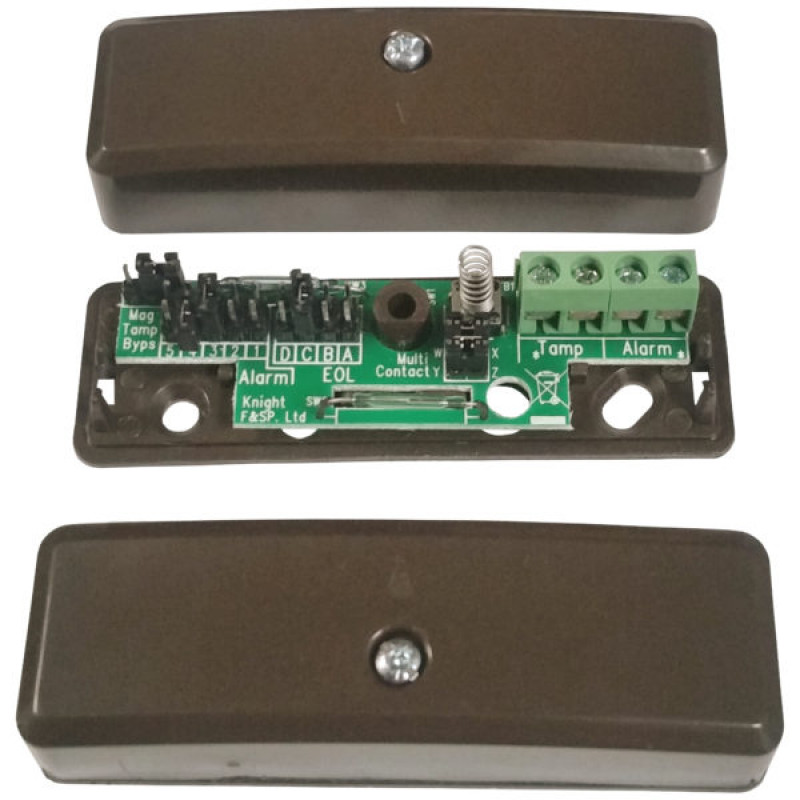

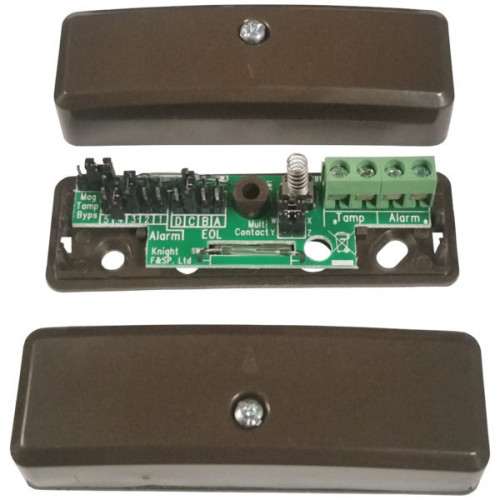

KnightP (YEND74B) Grade 3, Surface Contact, Multi Resistors, Brown
- Brand:Knight Plastics
- Product Code:YEND74B
- Availability:Please Call or Email Us to Check Availability
KnightP (YEND74B) Grade 3, Surface Contact, Multi Resistors, Brown
Grade 3 Contact, surface, suitable for Double Doors with MID, suits all panels, Brown
Grade: 3
Model: YEND74B
- Grade 3 Surface Contact with Magnetic Interference Detection and Selectable Resistors
- Double door contact
- Grade 3 door contact
- Can be installed on a 90 degree angle
- This is compatible with all mainstream UK control panels and includes both EOL and alarm by-pass resistor options
- TACT Microswitch tamper
- Colour: Brown
- Environmental Class 2
- Operation Gap: 30mm
- Approx Dimensions: 78mm x 25mm x 20mm
- Terminals: 4-Terminal Block Tamper
- TACT Microswitch
- Includes Resistors compatible with: Honeywell, Ademco, Scantronic, Menvier,
Texecom, Pyronix, HKC, Castle, Aritech, DSC, Gardtec, Guardall and Inner
Range Control Panels - Alarm Values: 1k, 4k7,5k6,6k8,8k2
- EOL Values: 1kr,2k2,4k7,5k6,8k2
- Just move easily accessible jumper to select
- Note this contact already meets the requirements of EN50131-2-6: 2008
- Can be turned into a Grade 2 device by simply using the header provided
- Contains two free spacers for awkward installations
- Suitable for double doors / wired in series / shared zone
