Knight Plastics, YEND74BK, Large with Selectable Resistors - Black (G3)
- Brand:Knight Plastics
- Product Code:YEND74BK
- Availability:Please Call or Email to Checkout

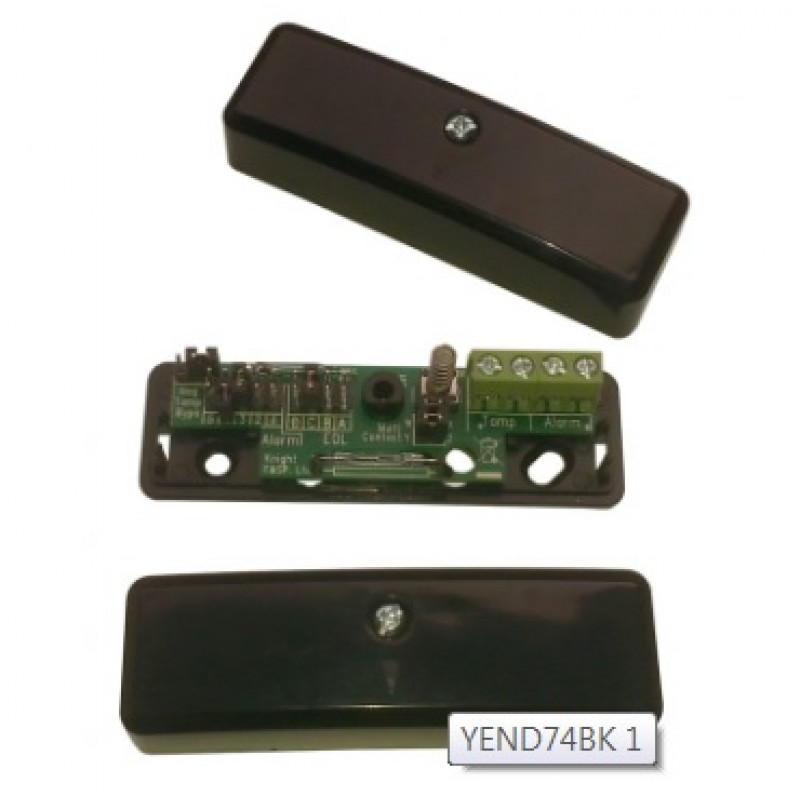

Knight Plastics, YEND74BK, Surface Contact with Selectable Resistors - Black (Grade 3)
Specification:
- G3 Surface Contact with Magnetic Interference Detection and Selectable Resistors
- This is compatible with all mainstream UK control panels and includes both EOL and alarm by-pass resistor options
- TACT Microswitch tamper
- Environmental Class 2
- Operation Gap: 30mm
- Approx Dimensions: 78mm x 25mm x 20mm
- Terminals: 4-Terminal Block Tamper
- TACT Microswitch
- Includes resistors compatible with: Honeywell, Ademco, Scantronic, Menvier,
- Texecom, Pyronix, HKC, Castle, Aritech, DSC, Gardtec, Guardall and Inner
- Range Control Panels
- Alarm Values 1k, 4k7,5k6,6k8,8k2
- EOL Values 1kr,2k2,4k7,5k6,8k2
- Just move easily accessible jumper to select
- Note this contact already meets the requirements of EN50131-2-6: 2008
- Can be turned into a Grade 2 device by simply using the header provided
- Contains two free spacers for awkward installations
- Suitable for double doors / wired in series / shared zone
Contact us on sales@hunters-wholesalers.co.uk for more specific product information and pricing installation and training.
