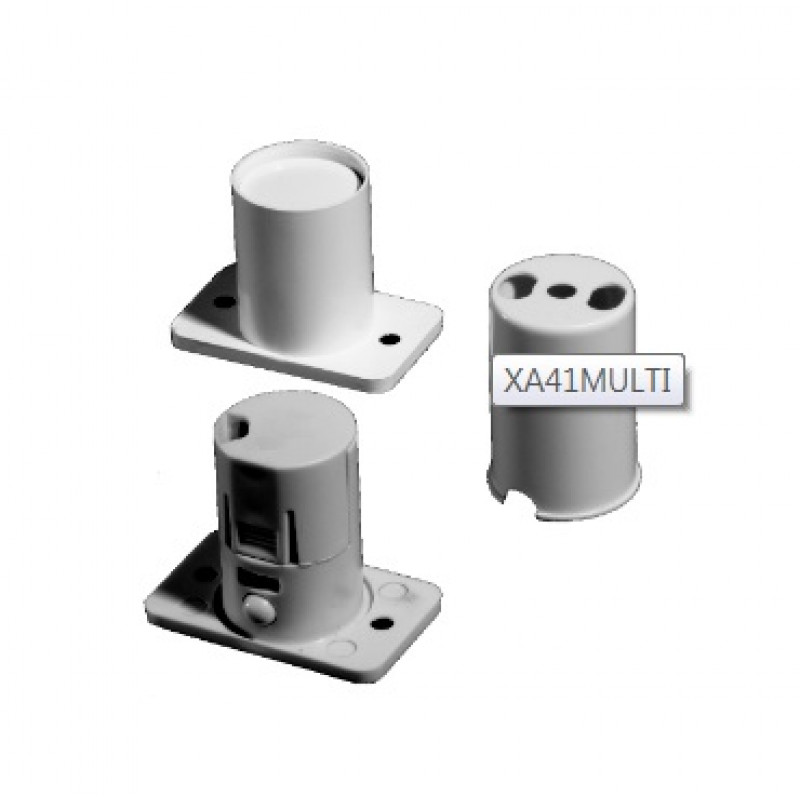

Knight Plastics, XA41MULTI, Flush Tampered Quickfit with Multi Resistors suitable for Double Doors (Grade 3)
- Brand:Knight Plastics
- Product Code:XA41MULTI
- Availability:Please Call or Email to Checkout
Knight Plastics, XA41MULTI, Flush Tampered Quickfit with Multi Resistors for Double Doors (Grade 3)
Specification:
- Grade 3 Flush Tampered Quickfit Contact With Multiple Resistors
- Double door contacts
- Rectangular Plate
- Will work on shared zones / double doors / wired in series
- This is compatible with most mainstream UK control panels and includes both EOL and alarm by-pass resistor options
- It has a microswitch tamper
- Environmental Class 2
- Colour: White
- Note: Add suffix B for Brown
- Operation Gap : 14mm Approx
- Dimensions: 20mm dia body, 30mm deep
- Terminals : 4-Terminal Block
- Tamper – TACT Microswitch
- Includes Resistors compatible with – Honeywell, Ademco, Orisec, Scantronic, Guardtec / RISCO, Menvier, HKC, Siemens, Europlex, Guardal, DSC, Texecom, Pyronix, Castle, PACOM Control, Inner Range Panels
- Alarm Values: No res, 1kr, 2k2, 4k1 (8k2), 4k7, 5k6, 6k8, 10k
- EOL Values: No res, 1kr, 2k2, 4k1 (8k2) 4k7, 5k6, 10k
- Just move and orientate the easily accessible coloured pcb jumpers to select-as per the instructions
- Note: this contact meets the requirements of EN50131-2-6: 2008
For more details, please refer with our attached datasheet.
