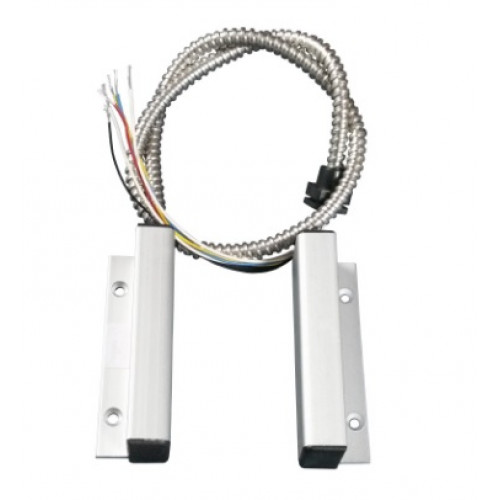

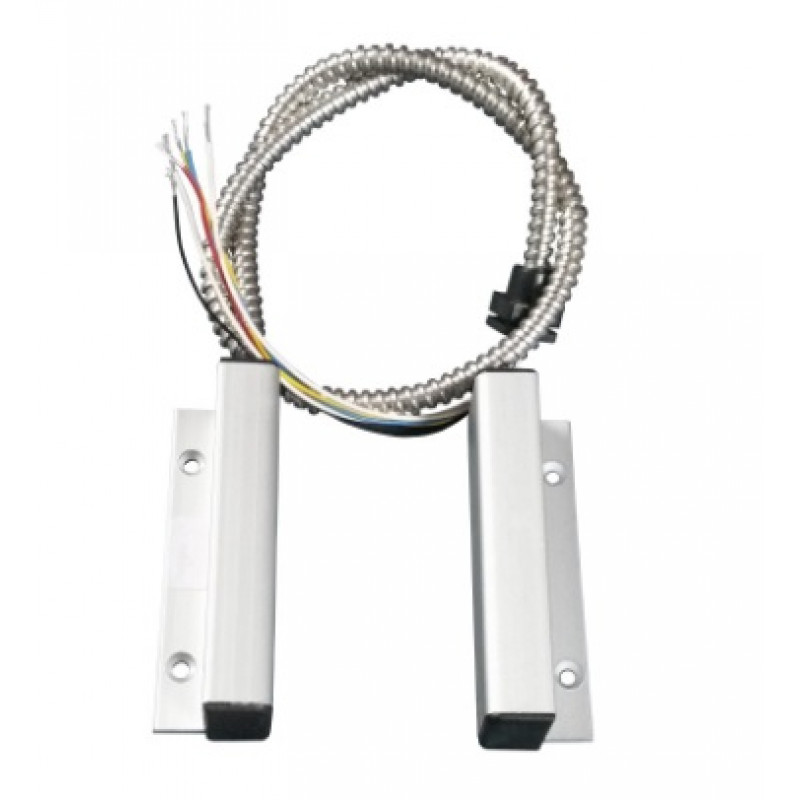

Knight Plastics, PDH10A4K72K2, Aluminium Angle Contact Single Reed 6-Wire Armoured Sleeve 4K7/2K2 (Grade 2)
- Brand:Knight Plastics
- Product Code:PDH10A4K72K2
- Availability:Please Call or Email to Checkout
Knight Plastics, PDH10A4K72K2, Aluminium Angle Contact Single Reed 6-Wire Armoured Sleeve 4K7/2K2 (Grade 2)
Specification:
- EN50131-2-6 Compliant to Grade 2
- Single Reed
- Env Class III
- Suitable for use with Castle, Menvier, Pyronix, Scantronic & Texecom panels
- Includes 4K7 resistor for alarm and 2K2 resistor for end of line
- Aluminium Angle Contact
- 6-Wire in Armoured Sleeve
- Dimensions: 80mm x 25mm x 27mm
- Operating Gap: 50mm
- Material: Anodised Aluminium
For more details, please refer with our attached datasheet.
